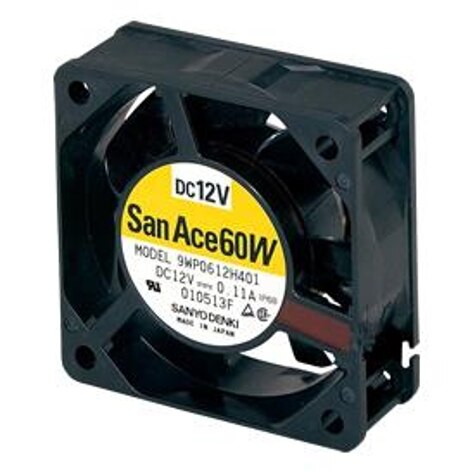

Specification	9WP0612D4D01

Air Flow	25 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Noise	37 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	2.52 w
RPM	5150 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	0.3 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Weight	0.243 lb
Width	25 mm

9WP Type Series

Part	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Noise	Width	Termination Leads Count	Termination Type	Termination	Approval Agency	Features	RPM	Static Pressure	Air Flow	Bearing Type	Voltage - Rated	Weight	Operating Temperature (Min)	Operating Temperature (Max)	Fan Type	Power (Watts)	Ingress Protection IP Rating	Ingress Protection Description	Lifetime	Voltage Range (Max)	Voltage Range (Min)	Material - Blade	Material - Frame	Current Rating
Sanyo Denki America Inc. 9WP1212H101	120 mm	Square	120 mm	39 dB	38 mm	3	Wire Leads	3 Wire Leads	CSA TUV UL	Speed Sensor (Tach)	2600 RPM	0.283 in H2O	99 CFM	Ball	12 VAC	0.794 lb	-4 °F	158 °F	Tubeaxial	4.56 W	IP68	Dust Tight Waterproof	40000 Hrs	13.8 VDC	7 V	Plastic	Plastic	0.38 A
Sanyo Denki America Inc. 9WP1212M1011	120 mm	Square	120 mm		38 mm	3	Wire Leads	3 Wire Leads		Locked Rotor Protection Speed Sensor (Tach)				Ball	12 VAC				Tubeaxial	2.52 w	IP68	Dust Tight Waterproof				Plastic	Plastic
Sanyo Denki America Inc. 9WP1212M101	120 mm	Square	120 mm		38 mm	3	Wire Leads	3 Wire Leads		Locked Rotor Protection Speed Sensor (Tach)				Ball	12 VAC				Tubeaxial	2.52 w	IP68	Dust Tight Waterproof				Plastic	Plastic
