VY1221K31Y5SQ6TV0
ActiveVishay Dale

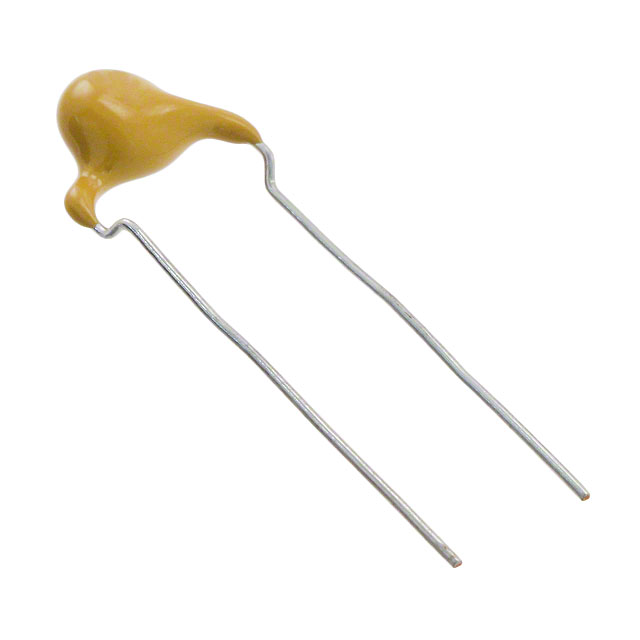

CAP CERAMIC SUPPRESSION X1/Y1 220PF 760VAC/500VAC Y5S 10%( 8 X 5MM) RADIAL DISC 10MM 125°C T/R
VY1221K31Y5SQ6TV0
ActiveVishay Dale
CAP CERAMIC SUPPRESSION X1/Y1 220PF 760VAC/500VAC Y5S 10%( 8 X 5MM) RADIAL DISC 10MM 125°C T/R
Description
General part information
VY1221K31Y5SQ6TV0
220 pF ±10% 760VAC Ceramic Capacitor Y5S Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | VY1221K31Y5SQ6TV0 |
|---|---|
| Applications | Safety |
| Capacitance | 220 pF |
| Height - Seated (Max) | 0.472 in |
| Lead Spacing | 0.394 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Ratings | X1, Y1 |
| Size / Dimension Diameter | 0.315 in |
| Temperature Coefficient | Y5S |
| Tolerance | 10 % |
| Voltage - Rated | 760 V |
