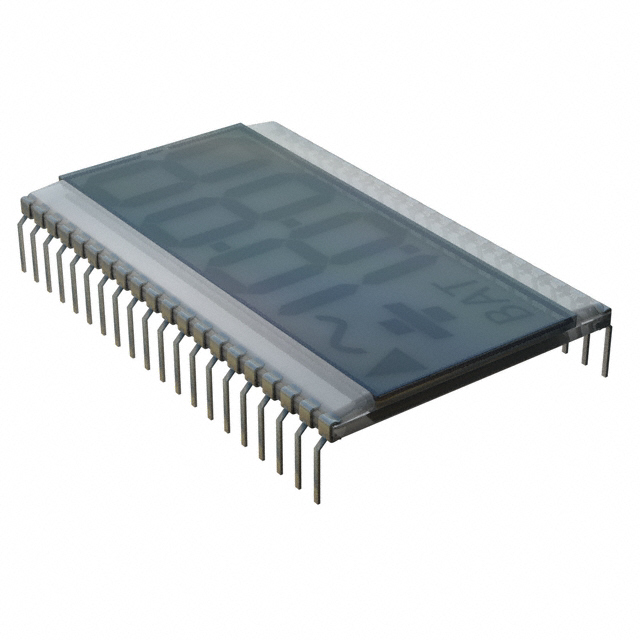

VI-322-DP-RC-S

Active

Varitronix

LCD MOD 3.5DIG 3.5 X 1 REFLECTIV

Search across all available documentation for this part.

Active

Varitronix

LCD MOD 3.5DIG 3.5 X 1 REFLECTIV

Technical Specifications

Parameters and characteristics for this part

LCD MOD 3.5DIG 3.5 X 1 REFLECTIV

Part	Display Type	Display Mode	Character Size [z]	Character Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Area [x]	Viewing Area [y]	Voltage - Supply	Character Format	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Number of Characters	Display Format [x]	Display Format [y]
Varitronix VI-322-DP-RC-S	TN - Twisted Nematic	Reflective	12.7 mm	7.1 mm	-10 °C	60 °C	45.8 mm	17.78 mm	3 V	7-Segment	50.8 mm	30.48 mm	2.8 mm	3.5	3.5	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 7-Segment TN - Twisted Nematic 50.80mm x 30.48mm x 2.80mm
