LP4-10-1-R

Active

Switch Components

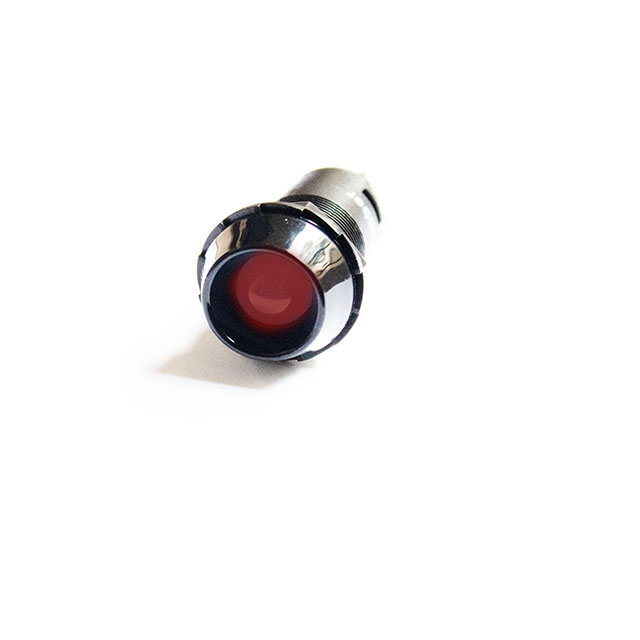

LED INDICATOR 10MM - RED, SCREW

Search across all available documentation for this part.

Active

Switch Components

LED INDICATOR 10MM - RED, SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

LED INDICATOR 10MM -AMBER, SCREW

Part	Type	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating	Termination Style	Panel Cutout Shape	Voltage	Viewing Angle	Lens Size [diameter]	Lens Style	Lamp Color	Lens Transparency
Switch Components LP4-10-1-A	LED	White	0.64 in	16.2 mm	200 mcd	Quick Connect - 0.250" (6.3mm)	Round	2.4 V	120 °	10 mm	Round with Protrusive Head	Amber	Diffused
Switch Components LP4-10-1-R	LED	White	0.64 in	16.2 mm	250 mcd	Quick Connect - 0.250" (6.3mm)	Round	2.4 V	110 °	10 mm	Round with Protrusive Head	Red	Diffused
Switch Components LP4-10-1-G	LED	White	0.64 in	16.2 mm	700 mcd	Quick Connect - 0.250" (6.3mm)	Round	3.9 V	120 °	10 mm	Round with Protrusive Head	Green	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 110° 2.4V 20mA Quick Connect - 0.250" (6.3mm)
