285-691
ActiveWAGO Corporation
2-CONDUCTOR THROUGH TERMINAL BLO
285-691
ActiveWAGO Corporation
2-CONDUCTOR THROUGH TERMINAL BLO
Description
General part information
285-691

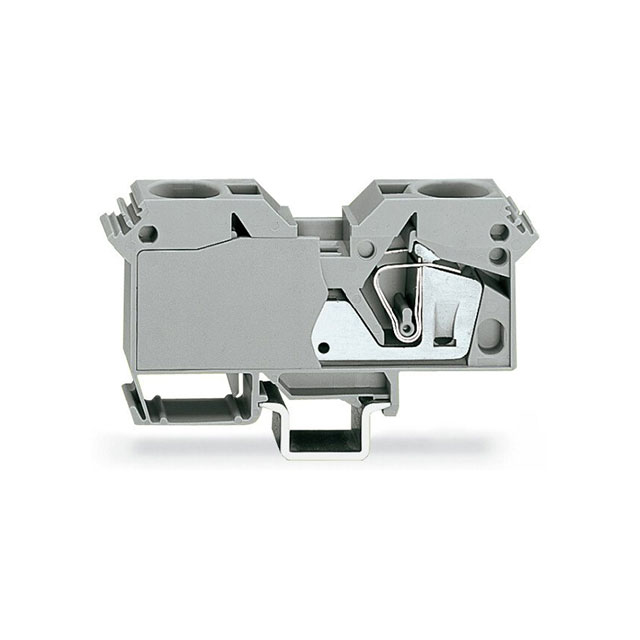

Terminal Block Connector 2 Position Feed Through Gray 2-8 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 285-691 |
|---|---|
| Color | Gray |
| Current - IEC | 120 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 23 mm |
| Terminal Width | 16 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 750 V |
| Wire Gauge or Range - AWG (Max) | 8 AWG |
| Wire Gauge or Range - AWG (Min) | 2 AWG |
| Wire Gauge or Range - mm² (Maximum) | 35 mm² |
| Wire Gauge or Range - mm² (Minimum) | 6 mm² |
