EN2C3F20G2

Active

Switchcraft Inc.

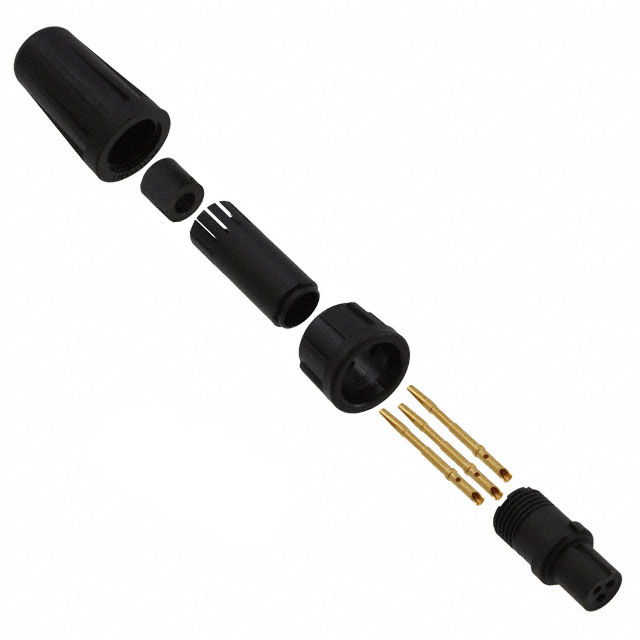

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C3F20G2

Active

Switchcraft Inc.

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.05
		10	$ 6.96
		25	$ 6.29
		50	$ 6.03

Description

General part information

EN2C3F Series

3 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C3F20G2	EN2C3F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening [Max] [diameter]	4.57 mm	4.57 mm
Cable Opening [Max] [diameter]	0.18 in	0.18 in
Cable Opening [Min] [diameter]	3.56 mm	3.56 mm
Cable Opening [Min] [diameter]	0.14 in	0.14 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C3F Series

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Material Flammability Rating	Termination	Contact Material	Insert Material	Voltage Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Shielding	Applications	Contact Finish - Mating	Current Rating (Amps)	Color	Mounting Type	Primary Material	Orientation	Backshell Material, Plating	Ingress Protection	Connector Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. EN2C3F20DCW	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut, Winged	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug
Switchcraft Inc. EN2C3F20G3W	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut, Winged	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug	0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C3F20G2W	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut, Winged	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug					4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C3F20G3	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug	0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C3F20DC	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug
Switchcraft Inc. EN2C3F20G2	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug					4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C3F20G1W	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut, Winged	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug									2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C3F20G1	UL94 V-0	Crimp, Solder Cup	Copper Alloy	Elastomer	125 VAC	Backshell, Coupling Nut	85 °C	-40 °C	Bayonet Lock	Unshielded	Communication Systems, Industrial, Marine, Medical	Gold	2 A	Black	Free Hanging (In-Line)	Plastic	Keyed	Thermoplastic	IP66, IP67, IP68	Female Sockets, Plug									2.54 mm, 3.56 mm	0.1 in, 0.14 in
