51-196.025D

Active

EAO

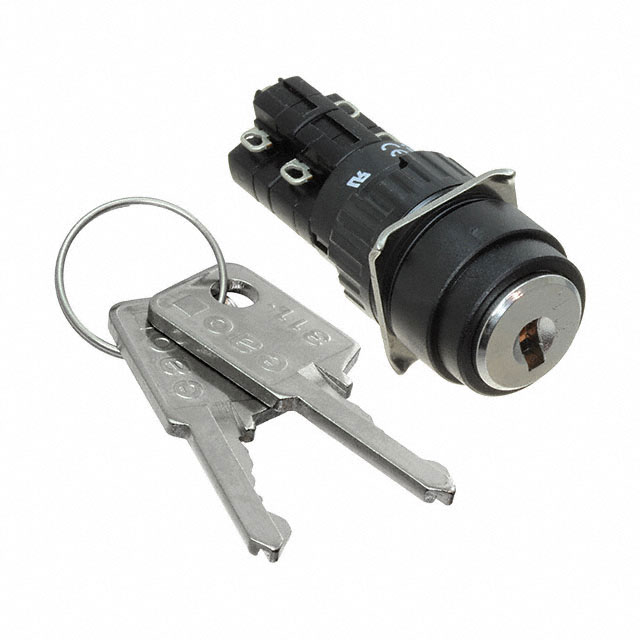

SWITCH KEYLOCK 2POS 4PST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS 4PST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-196.025D

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	4PST-2NO/2NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange	34 mm
Features	IP65
Key Removable Positions	All
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Voltage Rating - AC	250 V

SWITCH KEYLOCK 2POS 4PST 5A 250V

Part	Actuator Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Depth Behind Flange	Voltage Rating - AC	Number of Positions	Contact Timing	Angle of Throw	Circuit	Switch Function	Panel Cutout Dimensions [diameter]	Key Removable Positions	Current Rating (Amps)	Termination Style
EAO 51-196.025D	Flat Key	IP65	55 °C	-25 °C	34 mm	250 V	2	Not Specified	90 °	4PST-2NO/2NC	Off-On, On-Off	16 mm	All	5 A	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position 4PST-2NO/2NC 5A (AC) 250 VAC DC Panel Mount
