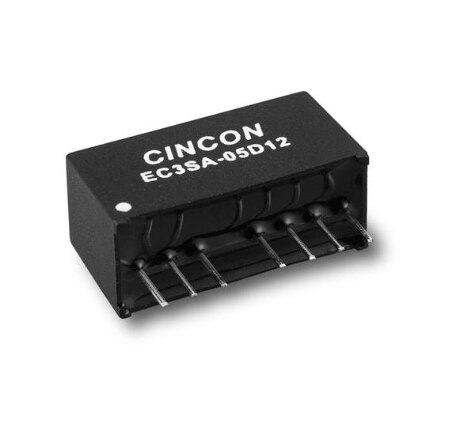

Specification	EC3SA-12D15N

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) Options	100mA
Efficiency	84 %
Features	Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	7 Leads
Package Name	8-SIP Module
Power (Watts)	3 W
Size / Dimension Height	0.44 in
Size / Dimension Length	0.86 in
Size / Dimension Width	0.36 in
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max)	18 V
Voltage - Input (Min)	9 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

EC3SA Series

Isolated DC/DC Converters - Through Hole DC-DC Converter, 3 Watt, Regulated, 4.5-9VDC Input, 12VDC Output

Part	Current - Output (Max) Options	Features	Voltage - Isolation	Mounting Type	Type	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Input (Min)	Voltage - Output 1	Package Leads	Package Name	Voltage - Input (Max)	Number of Outputs	Voltage - Output 2	Approval Agency	Power (Watts)	Efficiency	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Standard Number	Current - Output (Max)	Control Features
Cincon Electronics Co. LTD EC3SA-24D15N	100mA	Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	18 V	15 V	7 Leads	8-SIP Module	36 V	2	-15 V	CE	3 W	85 %	85 °C	-40 °C	ITE (Commercial)	60950-1
Cincon Electronics Co. LTD EC3SA-05S05N		Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	4.5 V	5 V	7 Leads	8-SIP Module	9 V	1		CE	3 W	78 %	85 °C	-40 °C	ITE (Commercial)	60950-1	600 mA
Cincon Electronics Co. LTD EC3SA-05S15N		Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	4.5 V	15 V	7 Leads	8-SIP Module	9 V	1		CE	3 W	81 %	85 °C	-40 °C	ITE (Commercial)	60950-1	200 mA
Cincon Electronics Co. LTD EC3SA-24S05N		Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	18 V	5 V	7 Leads	8-SIP Module	36 V	1		CE	3 W	81 %	85 °C	-40 °C	ITE (Commercial)	60950-1	600 mA
Cincon Electronics Co. LTD EC3SA-12D05		Remote On/Off	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	9 V	5 V	7 Leads	8-SIP Module	18 V	2	-5 V	CE	3 W	82 %	85 °C	-40 °C	ITE (Commercial)	60950-1	300 mA
Cincon Electronics Co. LTD EC3SAW-48D05P		Remote On/Off SCP UVLO	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	18 V	5 V	7 Leads	8-SIP Module	75 V	2	-5 V	CE	3 W	82 %	85 °C	-40 °C	ITE (Commercial)	60950-1	300 mA	Active High Enable
Cincon Electronics Co. LTD EC3SA-05D05N		Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	4.5 V	5 V	7 Leads	8-SIP Module	9 V	2	-5 V	CE	3 W	78 %	85 °C	-40 °C	ITE (Commercial)	60950-1	300 mA
Cincon Electronics Co. LTD EC3SA-05D12N		Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	4.5 V	12 V	7 Leads	8-SIP Module	9 V	2	-12 V	CE	3 W	81 %	85 °C	-40 °C	ITE (Commercial)	60950-1	125 mA
Cincon Electronics Co. LTD EC3SA-48S05N		Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	36 V	5 V	7 Leads	8-SIP Module	75 V	1		CE	3 W	81 %	85 °C	-40 °C	ITE (Commercial)	60950-1	600 mA
Cincon Electronics Co. LTD EC3SA-48S15N		Remote On/Off SCP	1500 Vrns	Through Hole	Isolated Module	0.86 in	0.36 in	0.44 in	36 V	15 V	7 Leads	8-SIP Module	75 V	1		CE	3 W	86 %	85 °C	-40 °C	ITE (Commercial)	60950-1	200 mA
