Description
General part information
9032707.33

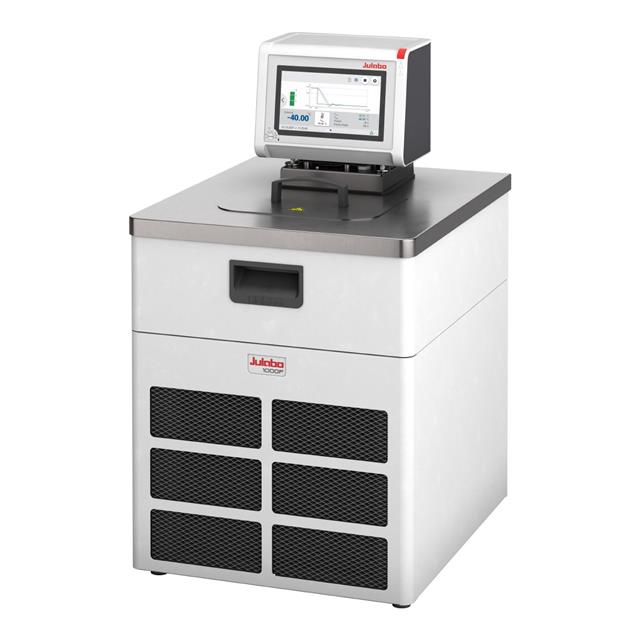

Refrigerated/Heating Circulator 230V 960 W 16 A 8.19GPM (31.0LPM)
Technical Specifications
Parameters and characteristics for this part
| Specification | 9032707.33 |
|---|---|
| Current | 16 A |
| Dimensions - Overall Height | 29.1 in |
| Dimensions - Overall Length | 19.3 in |
| Dimensions - Overall Width | 16.5 in |
| Features | Ethernet, Adjustable Pump, External Pt100, RS232/RS485, USB A, Stakei Output, USB B |
| Flow Rate | 8.19 GPM |
| Fluid Capacity | 7500 ML |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -50 °C |
| Power - Cooling | 960 W |
| Product Type | Refrigerated Circulator, Heating Circulator |
| Ratings | CE |
| Voltage | 230 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
