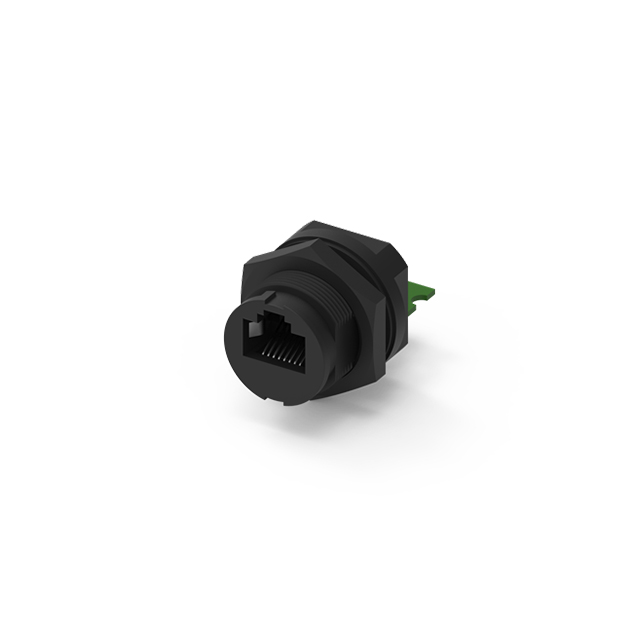

222A-03004
ActiveATTEND Technology
RJ45 8P8C WATERPROOF SOCKET, LOC
222A-03004
ActiveATTEND Technology
RJ45 8P8C WATERPROOF SOCKET, LOC
Description
General part information
222A-03004
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | 222A-03004 |
|---|---|
| Connector Type | Ethernet, RJ45, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Material | Phosphor Bronze |
| Housing Material | PBT, Polybutylene Terephthalate |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| LED Color | Does Not Contain LED |
| Mounting Type | Bulkhead, Panel Mount |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Straight |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | PC Board, Solder |
