194010-1
ActiveTE Connectivity AMP Connectors

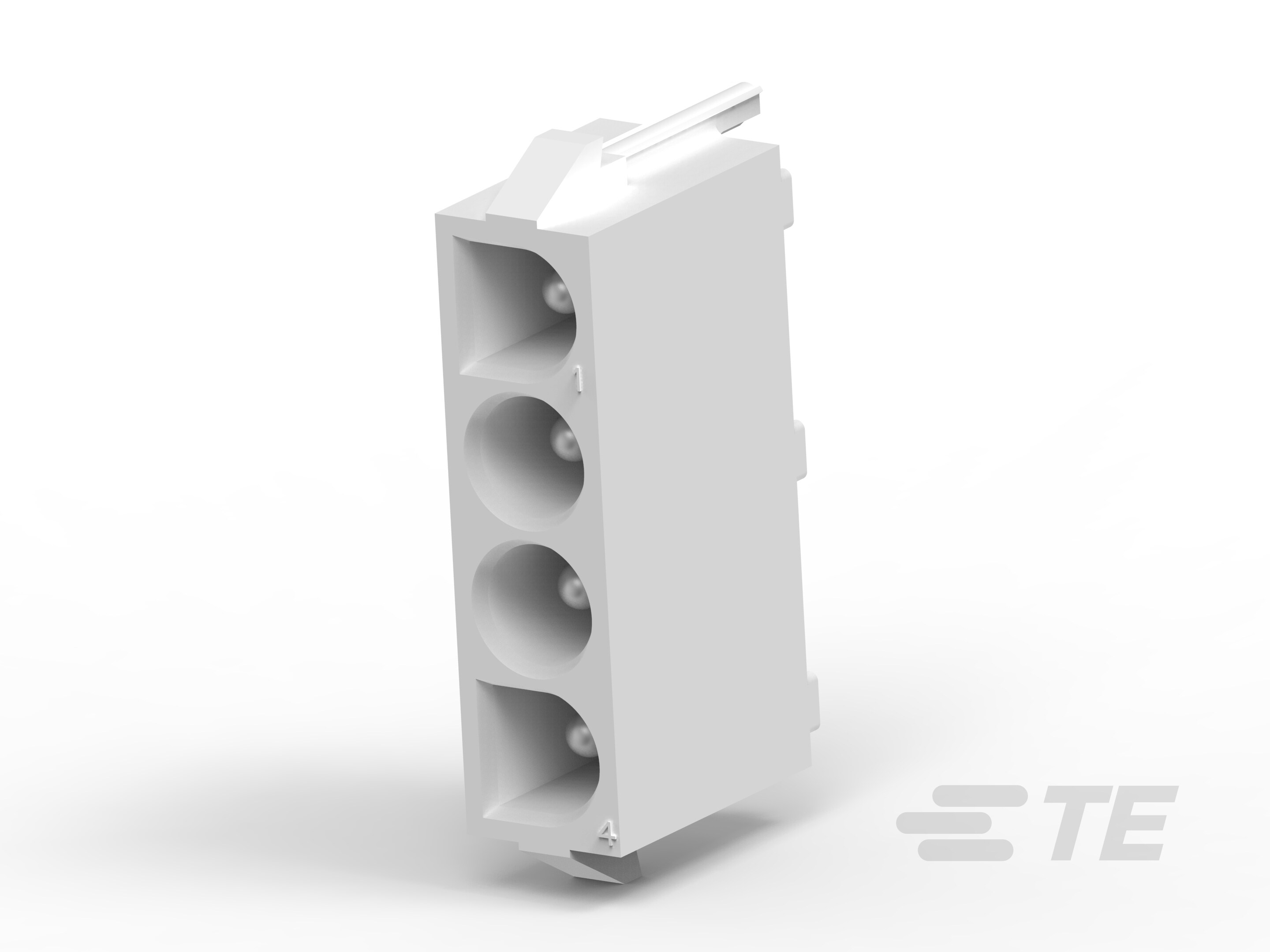

CONN HEADER VERT 4POS 6.35MM
194010-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 4POS 6.35MM
Description
General part information
194010-1
PCB Mount Header, Vertical, Wire-to-Board, 4 Position, 6.35 mm [.25 in] Centerline, Fully Shrouded, Silver (Ag), Through Hole - Solder, Power, White
Technical Specifications
Parameters and characteristics for this part
| Specification | 194010-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Silver |
| Contact Finish Thickness - Mating | 200 Ąin |
| Contact Length - Post | 0.145 in |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | White |
| Insulation Height | 0.55 in |
| Insulation Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.25 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
