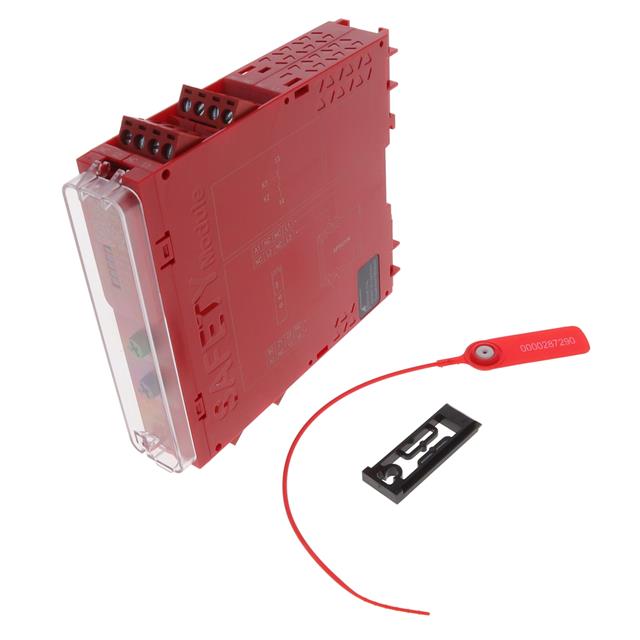

XPSUVN11AP
ActiveSAFETY RELAY, 24 VAC/VDC, SPST-NO, HARMONY XPS SERIES, DIN RAIL, 5 A, SCREW
XPSUVN11AP
ActiveSAFETY RELAY, 24 VAC/VDC, SPST-NO, HARMONY XPS SERIES, DIN RAIL, 5 A, SCREW
Description
General part information
XPSUVN11AP
XPSUVN11AP is a XPS universal safety module designed to protect industry operators and machines from incidents involving moving machine parts. Harmony XPS Universal range is supporting the integration of machines in digital service and predictive maintenance concepts. This is making Harmony XPS Universal for both OEMs and end users a future proof solution for creation of a single safety function.
Technical Specifications
Parameters and characteristics for this part
| Specification | XPSUVN11AP |
|---|---|
| Approval Agency | TUV, cULus |
| Contact Rating (Current) | 5 A |
| Controller Type | General Purpose |
| Delay Time (Max) | 60 sec |
| Delay Time (Min) | 0.5 sec |
| Features | Delay Time 0.5 ~ 60sec |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Safety Category | PLe, SIL3, Category 3 |
| Safety Output Type | Solid State, Relay |
| Safety Outputs - Relay Count | 1 |
| Safety Outputs - Solid State Count | 2 |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Option 2) | 24 DC |
| Voltage Rating | DC, 24VAC |
| Weight | 0.44 lb |
