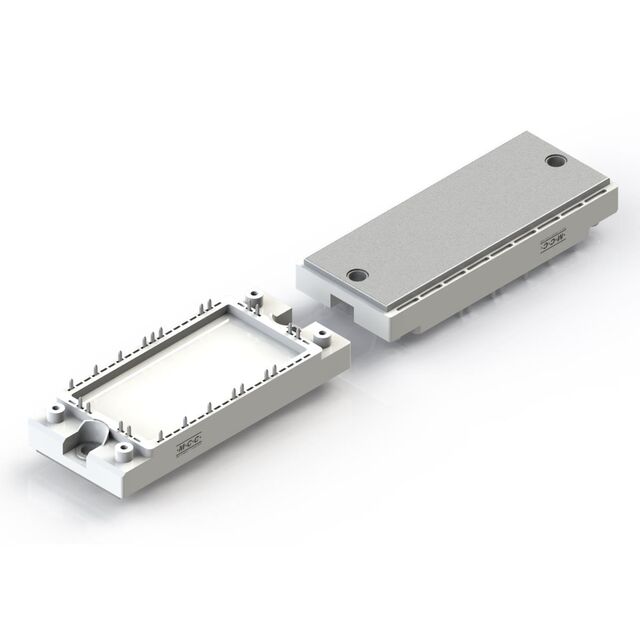

Specification	MIP35R12E1ATN-BP

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max)	35 A
Current - Collector Cutoff (Max)	1 mA
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	2250 pF
Mounting Type	Chassis Mount
NTC Thermistor	Yes
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Power - Max	227 W
Vce(on) (Max)	2.3 V
Voltage - Collector Emitter Breakdown (Max)	1200 V
