LB2012T101K
ActiveTaiyo Yuden
WIREWOUND INDUCTOR, 100 ΜH, 7 OHM, 8 MHZ, 45 MA, 0805 [2012 METRIC], LB SERIES
LB2012T101K
ActiveTaiyo Yuden
WIREWOUND INDUCTOR, 100 ΜH, 7 OHM, 8 MHZ, 45 MA, 0805 [2012 METRIC], LB SERIES
Description
General part information
LB2012T101K

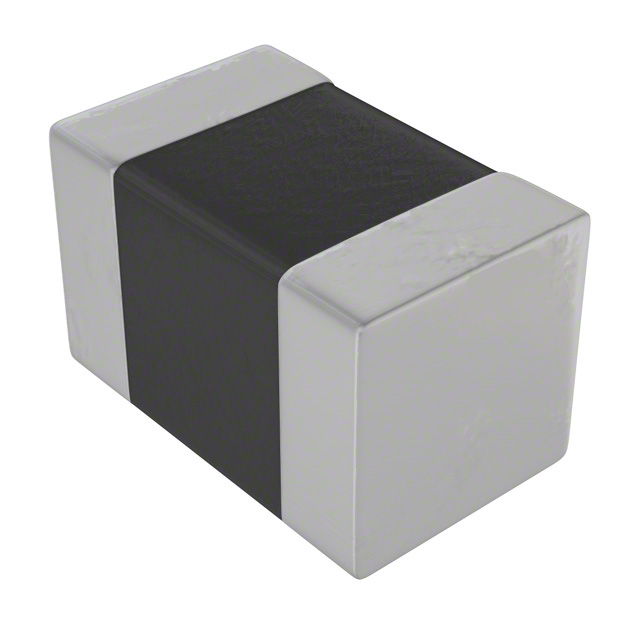

The LB2012T101K is a wirewound SMD Chip Inductor with 0805 case. LB series is wound chip inductor, suitable for any circuit designs. Reflow soldering method.
Technical Specifications
Parameters and characteristics for this part
| Specification | LB2012T101K |
|---|---|
| Current Rating | 45 mA |
| DC Resistance (DCR) | 7 Ohm |
| Frequency - Self Resonant | 8 MHz |
| Height - Seated (Max) | 0.057 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 796 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Length | 2 mm |
| Package Name | 0805, 0805 (2012 Metric) |
| Package Width | 1.2 mm |
| Shielding | Semi-Shielded, Unshielded |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Tolerance | 10 % |
| Type | Wirewound |
