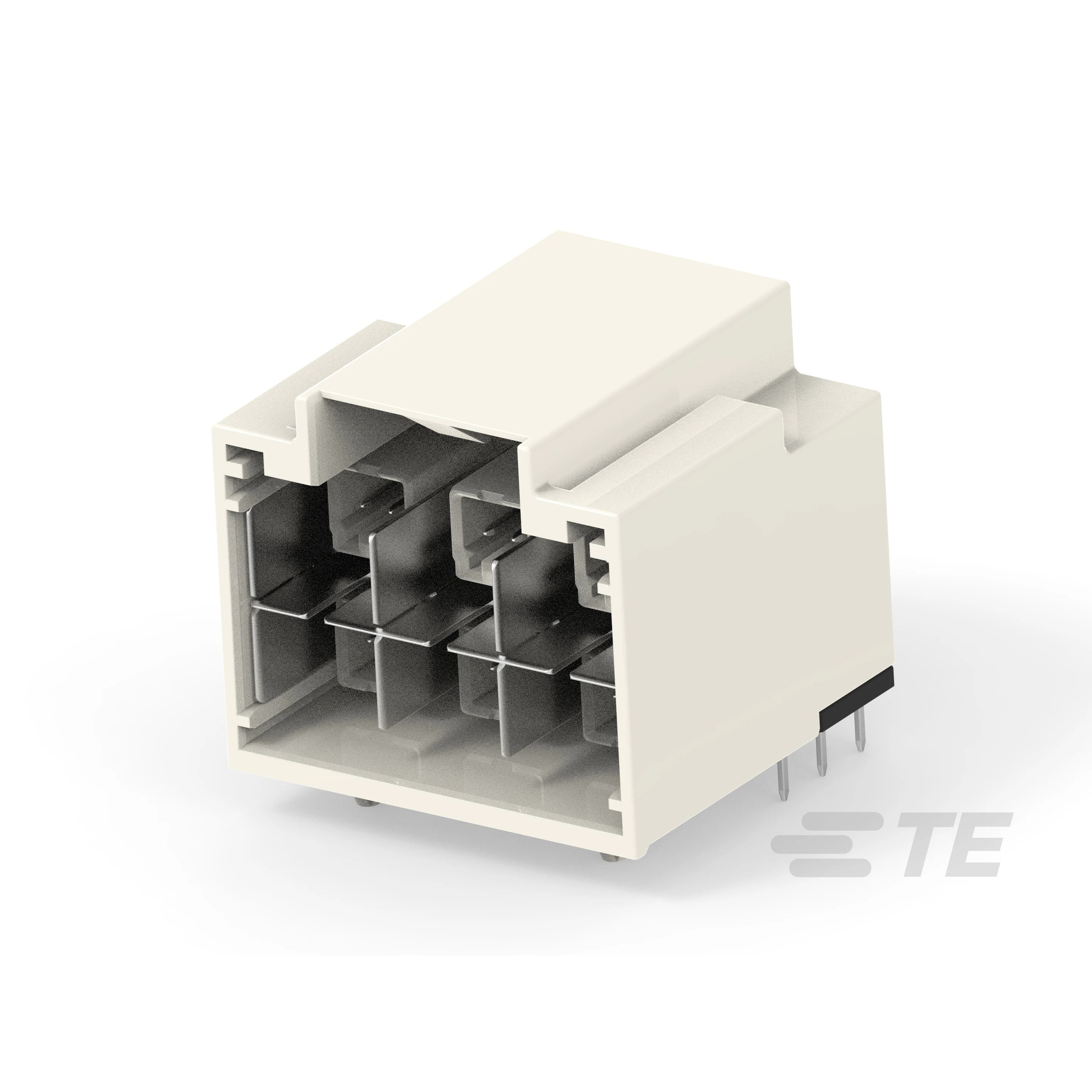

Specification	1-2339800-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	White
Insulation Height	0.89 in
Insulation Material	Nylon 4T, Polyamide (PA4T), Glass Filled
Material Flammability Rating	UL94 HB
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.071 in
Row Spacing - Mating	0.307 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	60 V
