PRDDA1-16F-BB0CW
ActiveTE Connectivity AMP Connectors

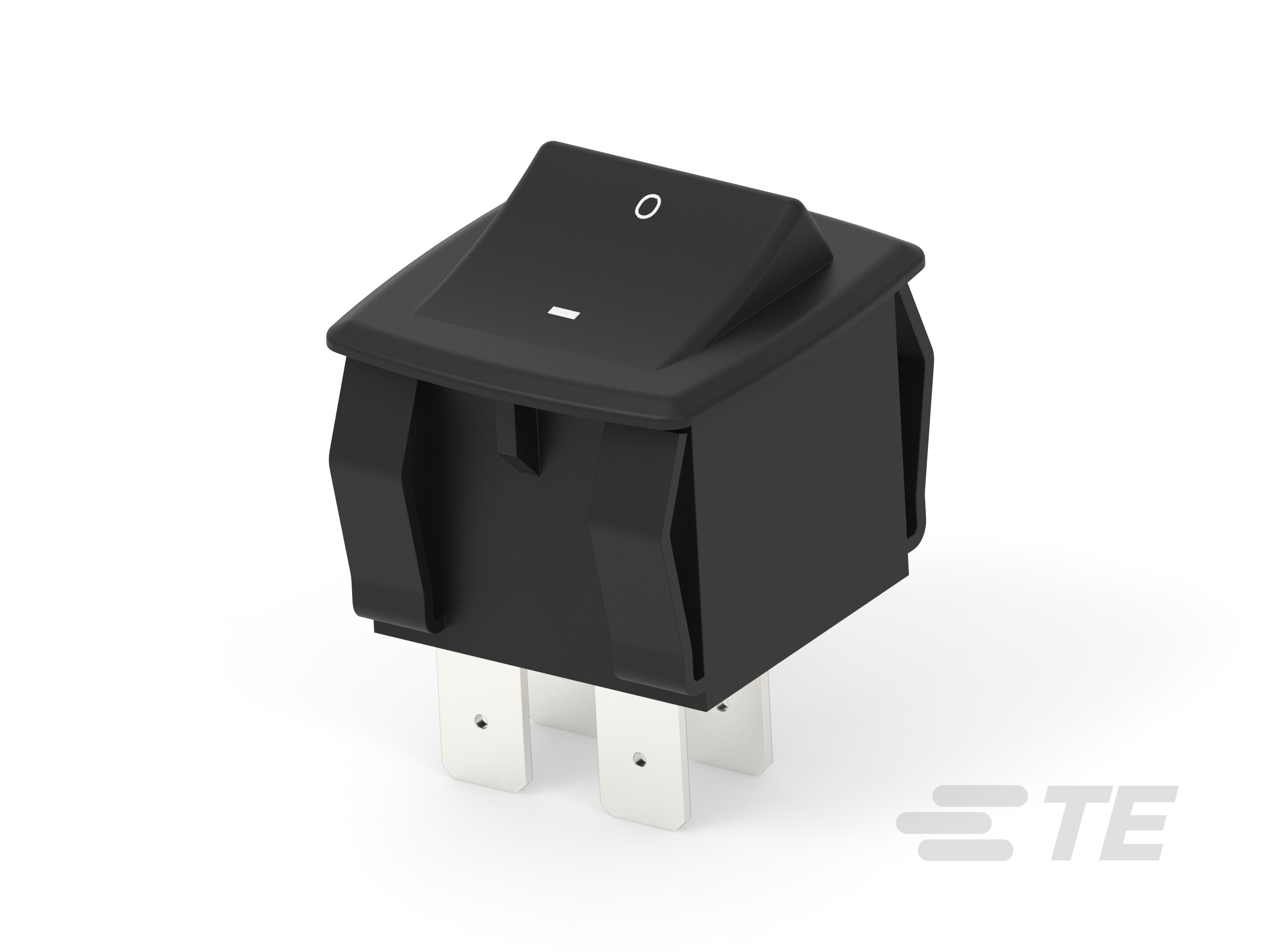

PRDDA1-16F-BB0CW,POWER ROCKER
PRDDA1-16F-BB0CW
ActiveTE Connectivity AMP Connectors
PRDDA1-16F-BB0CW,POWER ROCKER
Description
General part information
PRDDA1-16F-BB0CW
High Power Rocker Switch, Panel Mount, 21.2 x 37 mm [1.002 x 1.086 in] Panel Cutout, Silver Contact Plating
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDDA1-16F-BB0CW |
|---|---|
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating | 16 A |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Length | 27.6 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 25.4 mm |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
