1326031-8
ActiveTE Connectivity AMP Connectors
2.8MM BLD,SEAL,18AWG,REVREEL
1326031-8
ActiveTE Connectivity AMP Connectors
2.8MM BLD,SEAL,18AWG,REVREEL
Description
General part information
1.5/2.8 Connector System Series

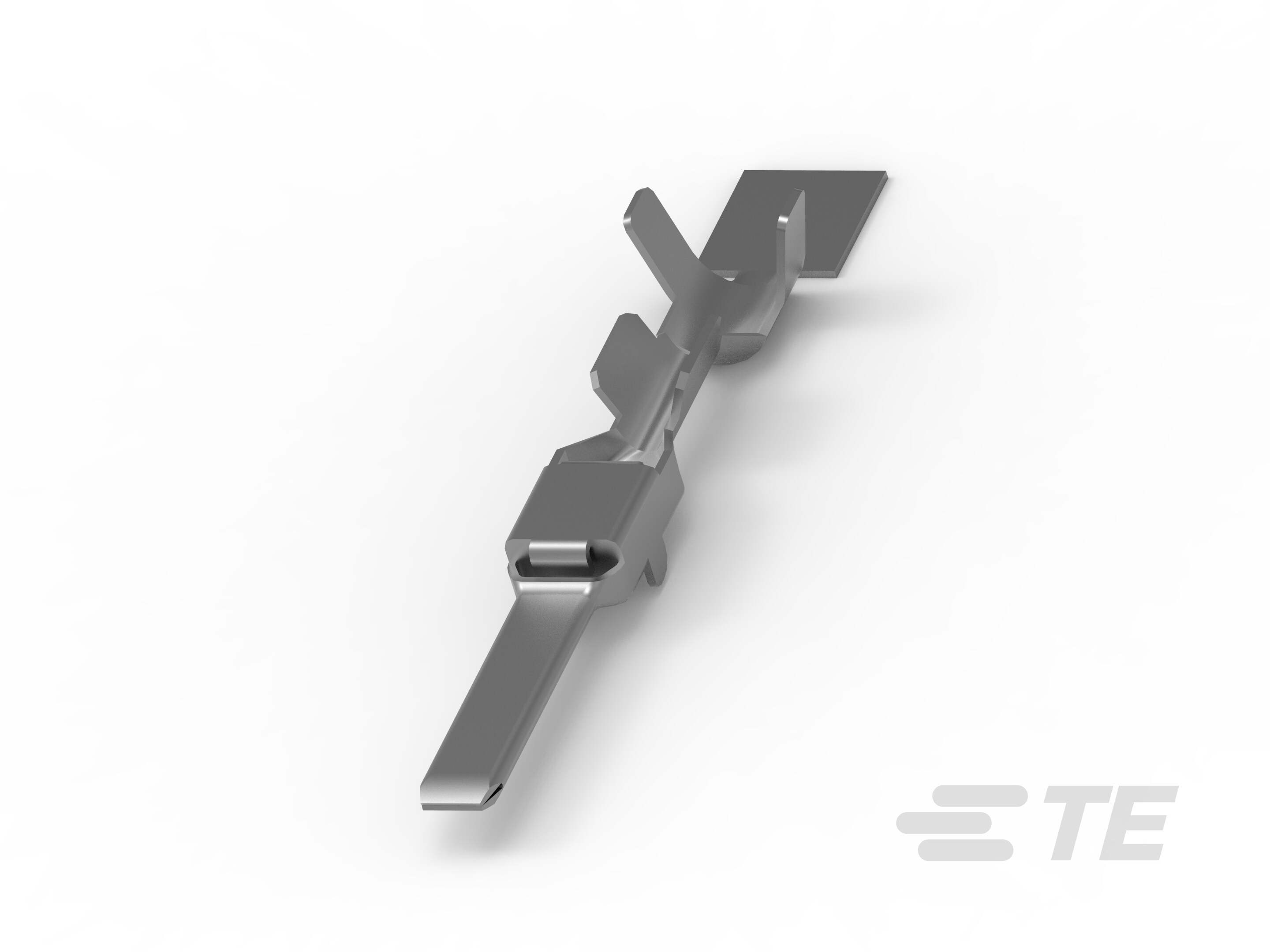

Tab Terminal, 18 AWG, .82 mm² Wire, 2.8 mm [.11 in] Tab Width, Tin (Sn), Sealable, .8 mm [.03 in] Tab Thickness, 1.5/2.8 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1326031-8 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Blade |
| Type | Power |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
