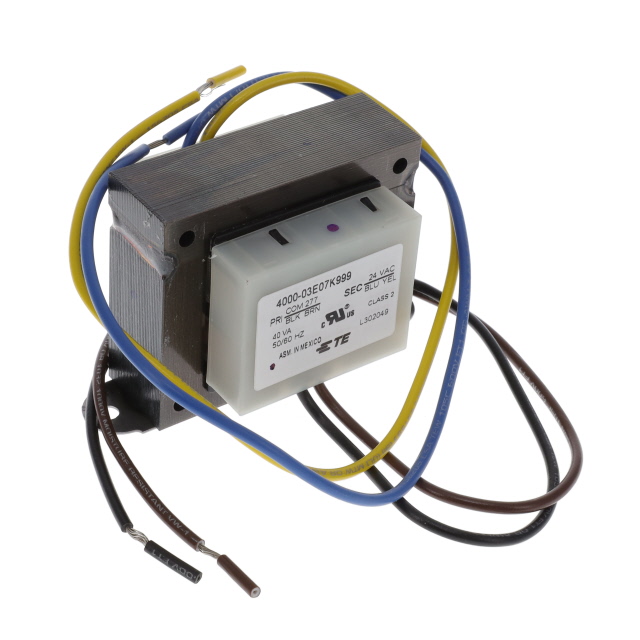

Specification	4000-03E07K999

Center Tap	No
Height - Seated (Max)	55.58 mm
Mounting Type	Chassis Mount
Power - Max	40 W
Primary Winding(s)	Single
Secondary Winding(s)	Single
Size / Dimension Length	90.47 mm
Size / Dimension Width	2.15 in
Termination Style	Wire Leads
Type	Laminated Core
Voltage - Primary	277 V
Voltage - Secondary (Full Load)	24 V
Weight	1.6 lbs

4000 Series

Part	Type	Termination Style	Power - Max	Size / Dimension Length	Size / Dimension Width	Voltage - Primary	Voltage - Primary (Option 2)	Voltage - Primary (Option 1)	Secondary Winding(s)	Weight	Primary Winding(s)	Voltage - Secondary (Full Load)	Center Tap	Mounting Type	Voltage - Primary	Height - Seated (Max)
TE Connectivity AMP Connectors 4000-09J15K999	Laminated Core	Wire Leads	75 W	4 in	2.5 in	208V 240V	240 V	208 V	Single	2.4 lbs	Single	24 V	No	Chassis Mount
TE Connectivity AMP Connectors 4000-20M04K999	Laminated Core	Quick Connect Solder	30 W						Single		Single	12 V	No	Chassis Mount	120 V
TE Connectivity AMP Connectors 4000-78AW18K999	Laminated Core	Wire Leads	50 VA	90.47 mm	2.5 in				Single	2.1 lb	Single	24 V	No	Chassis Mount	575 V	55.58 mm
TE Connectivity AMP Connectors 4000-03AW18K999	Laminated Core	Wire Leads	50 VA	90.47 mm	66.55 mm				Single	2.1 lb	Single	24 V	No	Chassis Mount	277 V	55.58 mm
TE Connectivity AMP Connectors 4000-04E07AE999	Laminated Core	Quick Connect Solder	40 W	90.47 mm	55.58 mm				Single		Single	24 V	No	Chassis Mount	480 V
TE Connectivity AMP Connectors 4000-09V18BB999	Laminated Core	Quick Connect Solder	40 W			208V 240V	240 V	208 V	Single	1.4 lbs	Multiple Taps Single	24 V	No	Chassis Mount
TE Connectivity AMP Connectors 4000-51E07K999	Laminated Core	Wire Leads	40 W	90.47 mm	2.15 in	380V 415V			Single	1.6 lbs	Single	24 V	No	Chassis Mount		55.58 mm
TE Connectivity AMP Connectors 4000-09AW18K999	Laminated Core	Wire Leads	50 VA	90.47 mm	66.55 mm	208V 240V	240 V	208 V	Single	2.1 lb	Single	24 V	No	Chassis Mount		55.58 mm
TE Connectivity AMP Connectors 4000-01E07U999	Laminated Core	Wire Leads	40 W						Single		Single	24 V	No	Chassis Mount	120 V
TE Connectivity AMP Connectors 4000-78E07K999	Laminated Core	Wire Leads	40 W	90.47 mm	55.37 mm				Single	1.6 lbs	Single	24 V	No	Chassis Mount	575 V	55.58 mm
