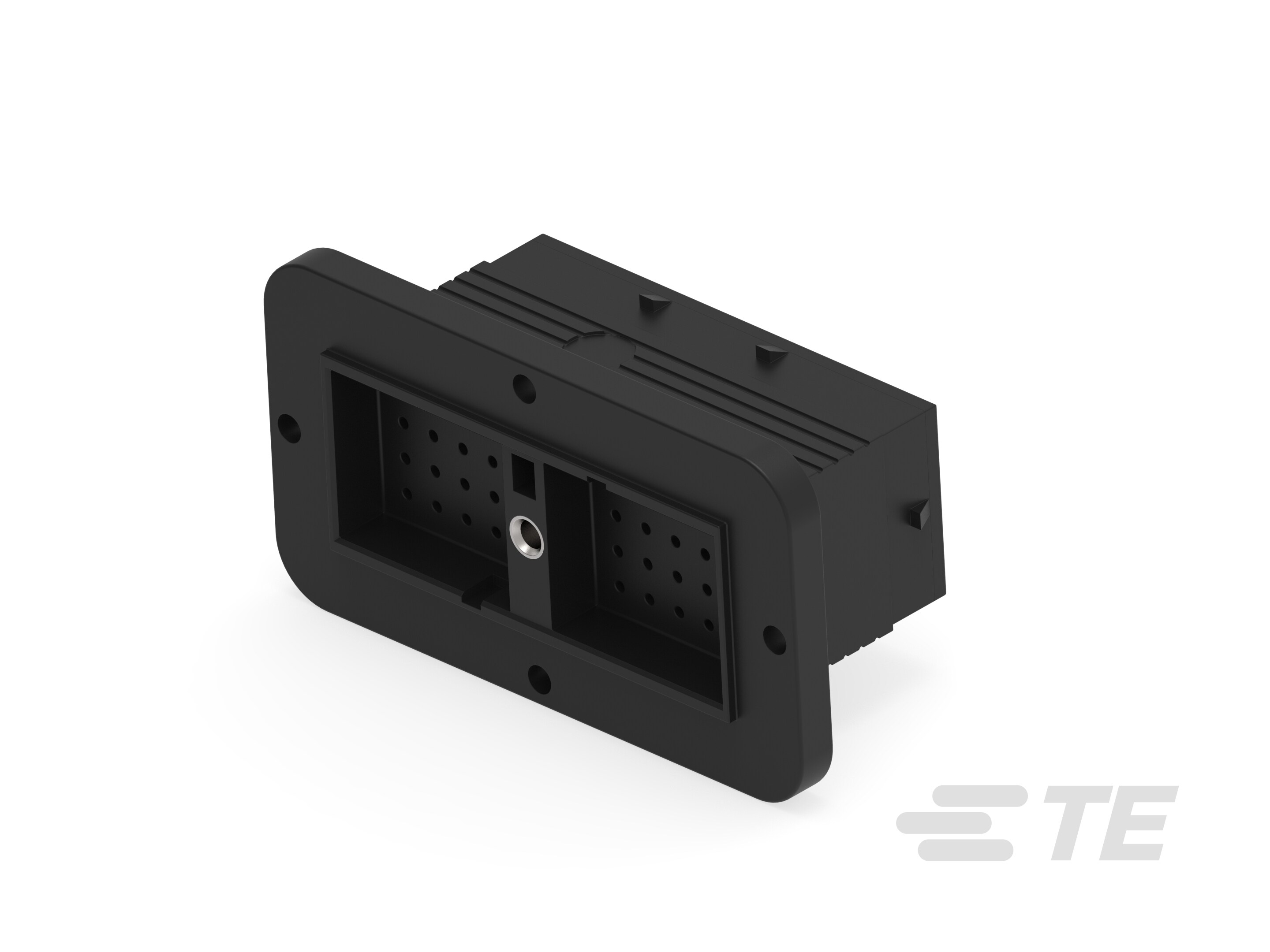

Specification	DRC12-40PD

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Screw Lock
Features	Sealed
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Panel Mount
Number of Positions	40
Number of Rows	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.216 in
Row Spacing	0.216 in

DEUTSCH DRC Series

...

Part	Insulation Material	Pitch	Features	Color	Connector Type	Number of Positions	Contact Termination	Contact Type	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Mounting Type	Row Spacing	Shrouding	Current Rating	Termination	Number of Positions Loaded	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Row Spacing - Mating	Contact Material	Pitch - Mating	Style	Contact Length - Post	Insulation Color	Contact Shape	Material Flammability Rating	Contact Finish - Post	Insulation Height
TE Connectivity AMP Connectors DRC16-70SA-P066	Glass Filled Polyphenylene Sulfide (PPS)	0.216 in	Sealed	Black	Receptacle	70	Crimp	Female Socket	5	125 °C	-55 °C	Push-Pull	Free Hanging (In-Line)	0.216 in
TE Connectivity AMP Connectors DRC26-24SB	Glass Filled Nylon 4/6 Polyamide (PA46)	0.174 in		Black	Plug	24 pos	Crimp	Female Socket	4	125 °C	-55 °C	Push-Pull	Free Hanging (In-Line)	0.173 in
TE Connectivity AMP Connectors DRC14-24PAE	Plastic	0.216 in	Cap (Cover) IP68 IP6K9K	Black	Receptacle	24 pos	Crimp	Male Pin	4	125 °C	-55 °C	Push-Pull	Free Hanging (In-Line)	0.216 in
TE Connectivity AMP Connectors DRC13-70PA-B027	Glass Filled Nylon 4/6 Polyamide (PA46)		Board Guide		Header	70		Male Pin	5	125 °C	-55 °C	Push-Pull	Right Angle Through Hole		Shrouded - 4 Wall	13 A	Solder	All	Nickel	250 V	DC	0.216 in	Copper Alloy	0.215 in	Board Cable/Wire	0.161 in	Black	Circular
TE Connectivity AMP Connectors DRC22-50P07	Glass Filled Nylon Polyamide (PA)		Board Guide		Receptacle	50		Male Pin	4	125 °C	-55 °C	Push-Pull	Panel Mount Through Hole		Shrouded - 4 Wall	7.5 A	Solder	All	Gold	250 V	DC	0.173 in	Copper Alloy	0.174 in	Board Cable/Wire	0.164 in	Black	Circular	UL94 V-0	Tin	1.187 in
TE Connectivity AMP Connectors DRC22-50P04	Glass Filled Nylon Polyamide (PA)		Board Guide		Receptacle	50		Male Pin	4	125 °C	-55 °C	Push-Pull	Panel Mount Through Hole		Shrouded - 4 Wall	7.5 A	Solder	All	Gold	250 V	DC	0.173 in	Copper Alloy	0.174 in	Board Cable/Wire	0.164 in	Black	Circular	UL94 V-0	Tin	1.187 in
TE Connectivity AMP Connectors DRC13-40PB-CG01	Plastic		Board Guide		Receptacle	40		Male Pin	4	125 °C	-55 °C	Push-Pull	Panel Mount Right Angle Through Hole		Shrouded - 4 Wall	13 A	Solder	All	Tin	250 V	DC	0.215 in		0.215 in	Board Cable/Wire	0.126 in	Black	Circular	UL94 V-0	Gold Tin	1.985 in
TE Connectivity AMP Connectors DRC18-40SA	Glass Filled Polyphenylene Sulfide (PPS)		Cap (Cover) Dust IP68	Black	Plug	40	Crimp	Female Socket	4	125 °C	-55 °C	Screw Lock	Free Hanging (In-Line)
TE Connectivity AMP Connectors DRC18-40SAE-P013	Glass Filled Polyphenylene Sulfide (PPS)	0.217 in	IP68	Black	Receptacle	40	Crimp	Female Socket	4	125 °C	-55 °C	Screw Lock	Surface Mount	0.216 in
