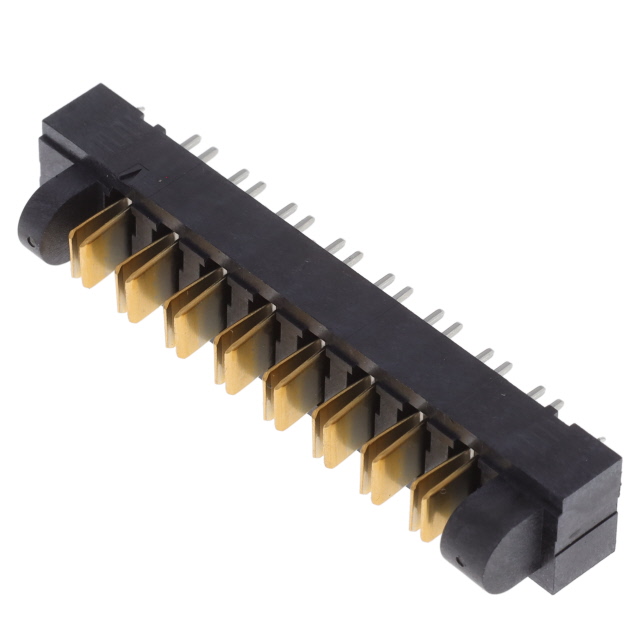

FMPT-08-01-L-S-V-LC
ActiveSamtec Inc.
CONN HDR 8POS 5.00MM PCB SLDR
Deep-Dive with AI
Search across all available documentation for this part.
FMPT-08-01-L-S-V-LC
ActiveSamtec Inc.
CONN HDR 8POS 5.00MM PCB SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FMPT-08-01-L-S-V-LC |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 30 A |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Termination | Solder |
| Voltage Rating | 742 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.93 | |
| 10 | $ 8.44 | |||
| 100 | $ 7.17 | |||
| 500 | $ 6.67 | |||
Description
General part information
FMPT-08 Series
8 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole
