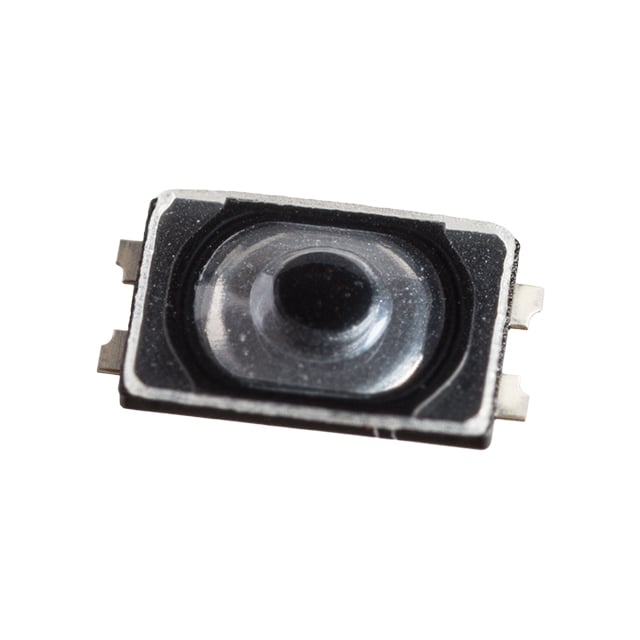

EVP-BB5AHE000
ActivePanasonic Electronic Components
SWITCH TACTILE SPST-NO 0.02A 15V
EVP-BB5AHE000
ActivePanasonic Electronic Components
SWITCH TACTILE SPST-NO 0.02A 15V
Description
General part information
EVP-BB5AHE000
SWITCH TACTILE SPST-NO 0.02A 15V
Technical Specifications
Parameters and characteristics for this part
| Specification | EVP-BB5AHE000 |
|---|---|
| Actuator Height off PCB (Vertical) | 0.57 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating (Current) | 0.02 A |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Surface Mount |
| Operating Force | 306 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Length | 2.6 mm |
| Outline Width | 1.6 mm |
| Switch Function | Off-Mom |
| Termination Style | SMD (SMT) Tab |
