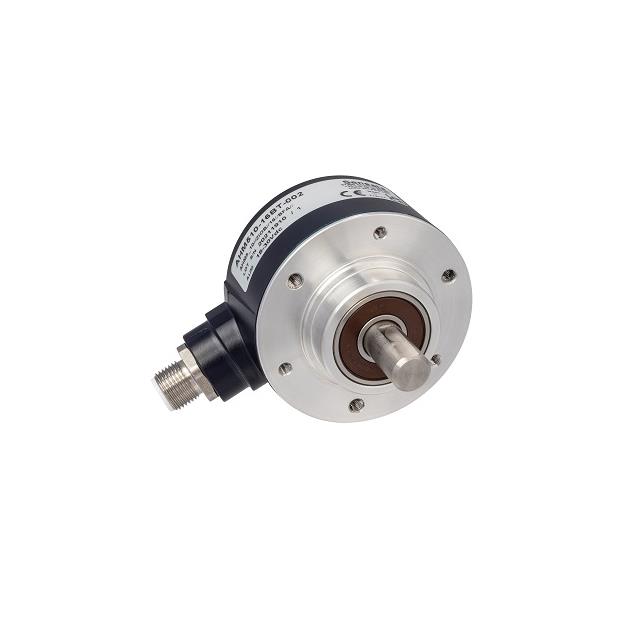

AHM506-16BT-001
ActiveSensata-BEI Encoders
ABSOLUTE SINGLE-TURN ENCODER IO-
AHM506-16BT-001
ActiveSensata-BEI Encoders
ABSOLUTE SINGLE-TURN ENCODER IO-
Description
General part information
AHM506-16BT-001
ABSOLUTE SINGLE-TURN ENCODER IO-
Technical Specifications
Parameters and characteristics for this part
| Specification | AHM506-16BT-001 |
|---|---|
| Actuator Type | Shaft |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Absolute |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Output Type | Binary (Absolute) |
| Pulses per Revolution | Programmable |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 18 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
