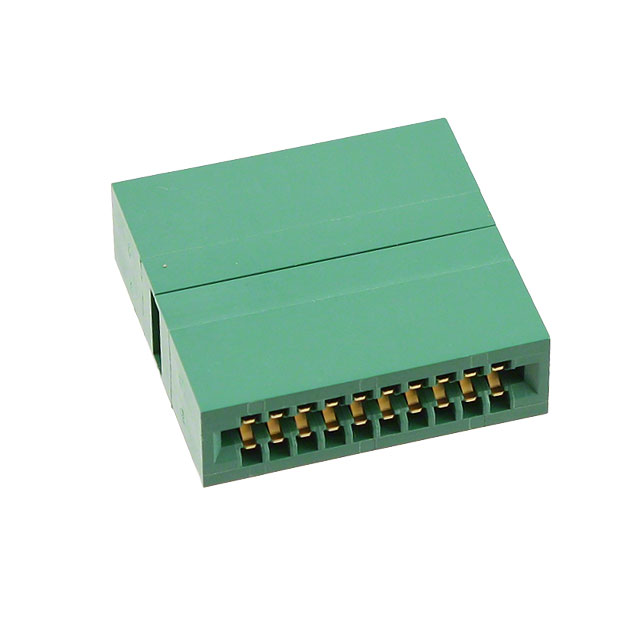

AAC10FSLN

Active

Sullins Connector Solutions

CONN EDGE ADAPT CARD-CARD 20POS

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN EDGE ADAPT CARD-CARD 20POS

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN EDGE ADAPT CARD-CARD 20POS

Part	Current Rating (Per Contact)	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Card Thickness	Card Thickness	Mounting Type
Sullins Connector Solutions AAC10FSLD	3 A	Beryllium Copper	0.125 in	Top Opening, Unthreaded	3.18 mm	-65 ░C	150 °C	Card Slot to Card Slot	0.76 Ám	30 Áin	Gold	20	0.062 in	1.57 mm
Sullins Connector Solutions AAC10FSLN	3 A	Beryllium Copper				-65 ░C	150 °C	Card Slot to Card Slot	0.76 Ám	30 Áin	Gold	20	0.062 in	1.57 mm	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 20.93

General part information

20 Position Edge Adapter Connector Card Slot to Card Slot Free Hanging (In-Line)

Technical documentation and resources

No documents available
