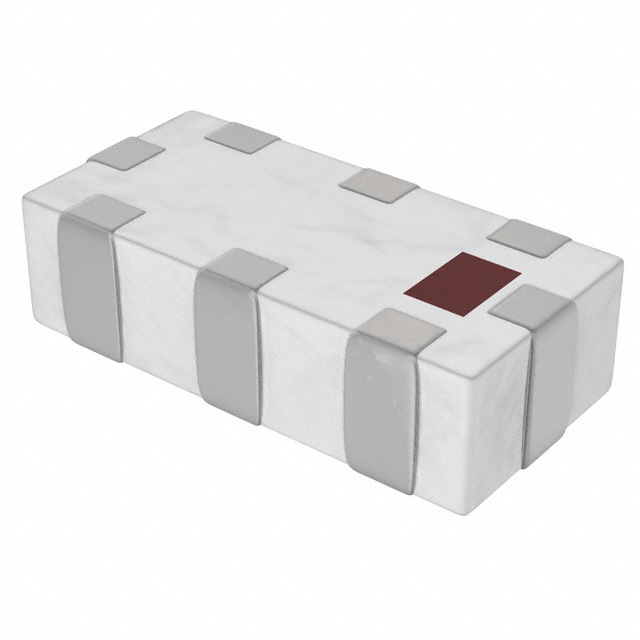

2450BM18A001E
ObsoleteJohanson Technology Inc.
BALUN 2.4GHZ-2.5GHZ 1206
2450BM18A001E
ObsoleteJohanson Technology Inc.
BALUN 2.4GHZ-2.5GHZ 1206
Description
General part information
2450BM18A001E
RF Balun 2.4GHz ~ 2.5GHz 50 / -Ohm 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2450BM18A001E |
|---|---|
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Impedance - Unbalanced | 50 Ohm |
| Insertion Loss (Max) | 5 dB, 4.2 dB |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Phase Difference | 180 ° |
| Phase Difference Tolerance | 10 ° |
| Return Loss (Min) | 9.5 dB |
