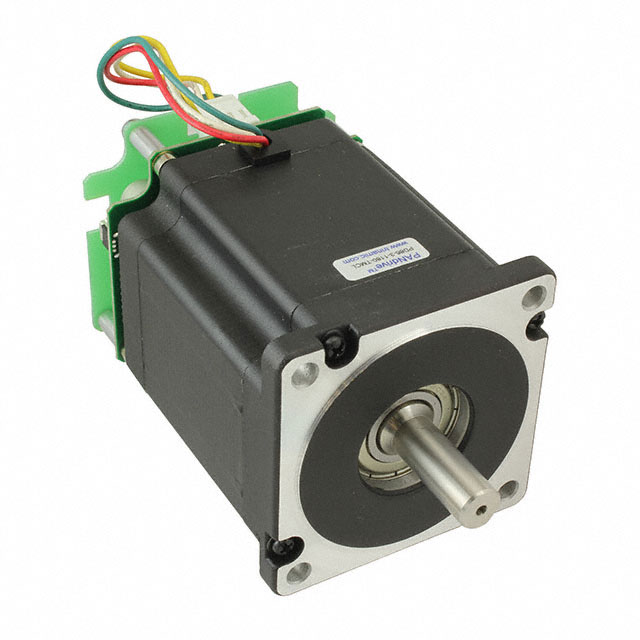

PD86-3-1180-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 48V
Deep-Dive with AI
Search across all available documentation for this part.
PD86-3-1180-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD86-3-1180-CANOPEN | PD86-3 Series |
|---|---|---|
| Coil Resistance | 0.45 Ohms | 0.45 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 5.5 Amps | 5.5 Amps |
| Diameter - Shaft [diameter] | 12.7 mm | 12.7 mm |
| Diameter - Shaft [diameter] | 0.5 in | 0.5 in |
| Features | Flatted Shaft, Integrated Controller | Flatted Shaft, Integrated Controller |
| Length - Shaft and Bearing [x] | 33.27 mm | 33.27 mm |
| Length - Shaft and Bearing [x] | 1.31 in | 1.31 in |
| Mounting Hole Spacing | 2.74 in | 2.74 in |
| Mounting Hole Spacing | 69.6 mm | 69.6 mm |
| NEMA Frame Size | 34 | 34 |
| NEMA Frame Size | - | 24 |
| Operating Temperature | - | 50 °C |
| Operating Temperature | - | -20 C |
| Rotor Inertia | - | 2700 gcm² |
| Size / Dimension [x] | 3.382 " | 2.362 - 3.386 " |
| Size / Dimension [x] | 85.9 mm | 60 - 86 mm |
| Size / Dimension [y] | 85.9 mm | 60 - 86 mm |
| Size / Dimension [y] | 3.382 " | 2.362 - 3.386 " |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | 200 | 200 |
| Torque - Holding (oz-in / mNm) | 991.28 oz-in | 991.28 oz-in |
| Torque - Holding (oz-in / mNm) | 7000 mNm | 7000 mNm |
| Type | Hybrid | Hybrid |
| Voltage - Rated | - | 2.56 VDC |
| Voltage - Rated [custom] | 48 VDC | 48 VDC |
| Weight | 6.2 lbs | 6.2 lbs |
| Weight | 2.8 kg | 2.8 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 670.71 | |
| 5 | $ 657.81 | |||
| 10 | $ 644.91 | |||
PD86-3 Series
STEPPER MOTOR HYBRID BIPOLAR 48V
| Part | Features | Current Rating (Amps) | Voltage - Rated [custom] | Weight | Weight | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | NEMA Frame Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Coil Type | Mounting Hole Spacing | Mounting Hole Spacing | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Coil Resistance | Step Angle | Steps per Revolution | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Rotor Inertia | NEMA Frame Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD86-3-1180-CANOPEN | Flatted Shaft, Integrated Controller | 5.5 Amps | 48 VDC | 6.2 lbs | 2.8 kg | 991.28 oz-in | 7000 mNm | 34 | 85.9 mm | 3.382 " | 85.9 mm | 3.382 " | Hybrid | Bipolar | 2.74 in | 69.6 mm | 33.27 mm | 1.31 in | 0.45 Ohms | 1.8 ° | 200 | 12.7 mm | 0.5 in | |||||
Analog Devices Inc./Maxim Integrated PD86-3-1180-TMCL | Flatted Shaft, Integrated Controller | 5.5 Amps | 48 VDC | 6.2 lbs | 2.8 kg | 991.28 oz-in | 7000 mNm | 34 | 85.9 mm | 3.382 " | 85.9 mm | 3.382 " | Hybrid | Bipolar | 2.74 in | 69.6 mm | 33.27 mm | 1.31 in | 0.45 Ohms | 1.8 ° | 200 | 12.7 mm | 0.5 in | |||||
Analog Devices Inc./Maxim Integrated PD86-3-1260-TMCL | Flatted Shaft, Integrated Controller | 5.5 Amps | 48 VDC | 991.28 oz-in | 7000 mNm | 34 | 85.9 mm | 3.382 " | 85.9 mm | 3.382 " | Hybrid | Bipolar | 2.74 in | 69.6 mm | 33.27 mm | 1.31 in | 0.45 Ohms | 1.8 ° | 200 | 12.7 mm | 0.5 in | |||||||
Analog Devices Inc./Maxim Integrated PD86-3-1260-CANOPEN | Flatted Shaft, Integrated Controller | 5.5 Amps | 48 VDC | 991.28 oz-in | 7000 mNm | 34 | 85.9 mm | 3.382 " | 85.9 mm | 3.382 " | Hybrid | Bipolar | 2.74 in | 69.6 mm | 33.27 mm | 1.31 in | 0.45 Ohms | 1.8 ° | 200 | 12.7 mm | 0.5 in | |||||||
Analog Devices Inc./Maxim Integrated PD86-3-1278-CANOPEN | Flatted Shaft, Integrated Controller | 5.5 Amps | 991.28 oz-in | 7000 mNm | 34 | 86 mm | 3.386 in | 86 mm | 3.386 in | Hybrid | Bipolar | 0.45 Ohms | 1.8 ° | 200 | 2.56 VDC | 50 °C | -20 C | 2700 gcm² | ||||||||||
Analog Devices Inc./Maxim Integrated PD86-3-1278-TMCL | Flatted Shaft, Integrated Controller | 5.5 Amps | 991.28 oz-in | 7000 mNm | 34 | 86 mm | 3.386 in | 86 mm | 3.386 in | Hybrid | Bipolar | 0.45 Ohms | 1.8 ° | 200 | 2.56 VDC | 50 °C | -20 C | 2700 gcm² | ||||||||||
Analog Devices Inc./Maxim Integrated PD86-3-1378-CANOPEN | Flatted Shaft, Integrated Controller | 5.5 Amps | 991.28 oz-in | 7000 mNm | 60 mm | 2.362 in | 60 mm | 2.362 in | Hybrid | Bipolar | 0.45 Ohms | 1.8 ° | 200 | 2.56 VDC | 50 °C | -20 C | 2700 gcm² | 24 |
Description
General part information
PD86-3 Series
Bipolar Stepper Motor Hybrid Frame Size 34 200.0 Step 5.5 A 48VDC
