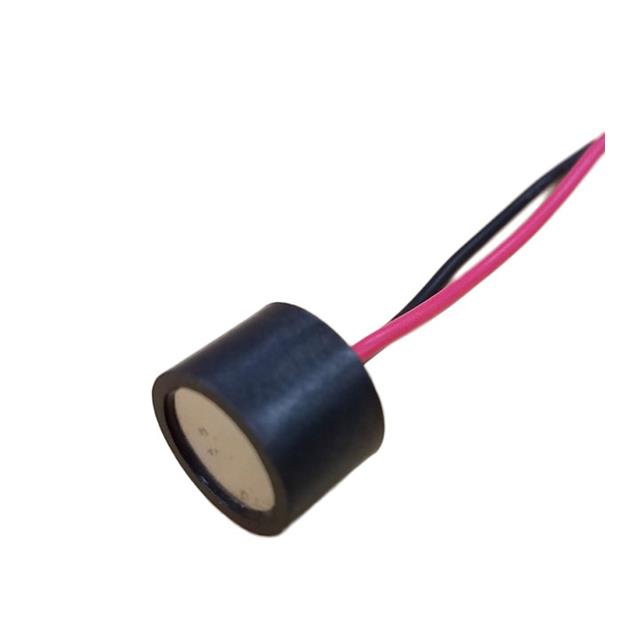

AT-1442-T-WP-LW80-R
ActivePUI Audio, Inc.
TRANSDUCER, 84 DBA, 4.25 KHZ, 20 NF
AT-1442-T-WP-LW80-R
ActivePUI Audio, Inc.
TRANSDUCER, 84 DBA, 4.25 KHZ, 20 NF
Description
General part information
AT-1442-T-WP-LW80-R
Buzzers Indicator, Internally Driven Piezo 10 V 10.1mA 4.25kHz 84dB @ 10V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | AT-1442-T-WP-LW80-R |
|---|---|
| Current - Supply | 10.1 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 4.25 kHz |
| Height - Seated (Max) | 0.394 in |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.551 in |
| Sound Pressure Level (SPL) | 84 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 10 V |
| Voltage Range | 30 V |
