Description

General part information

323912

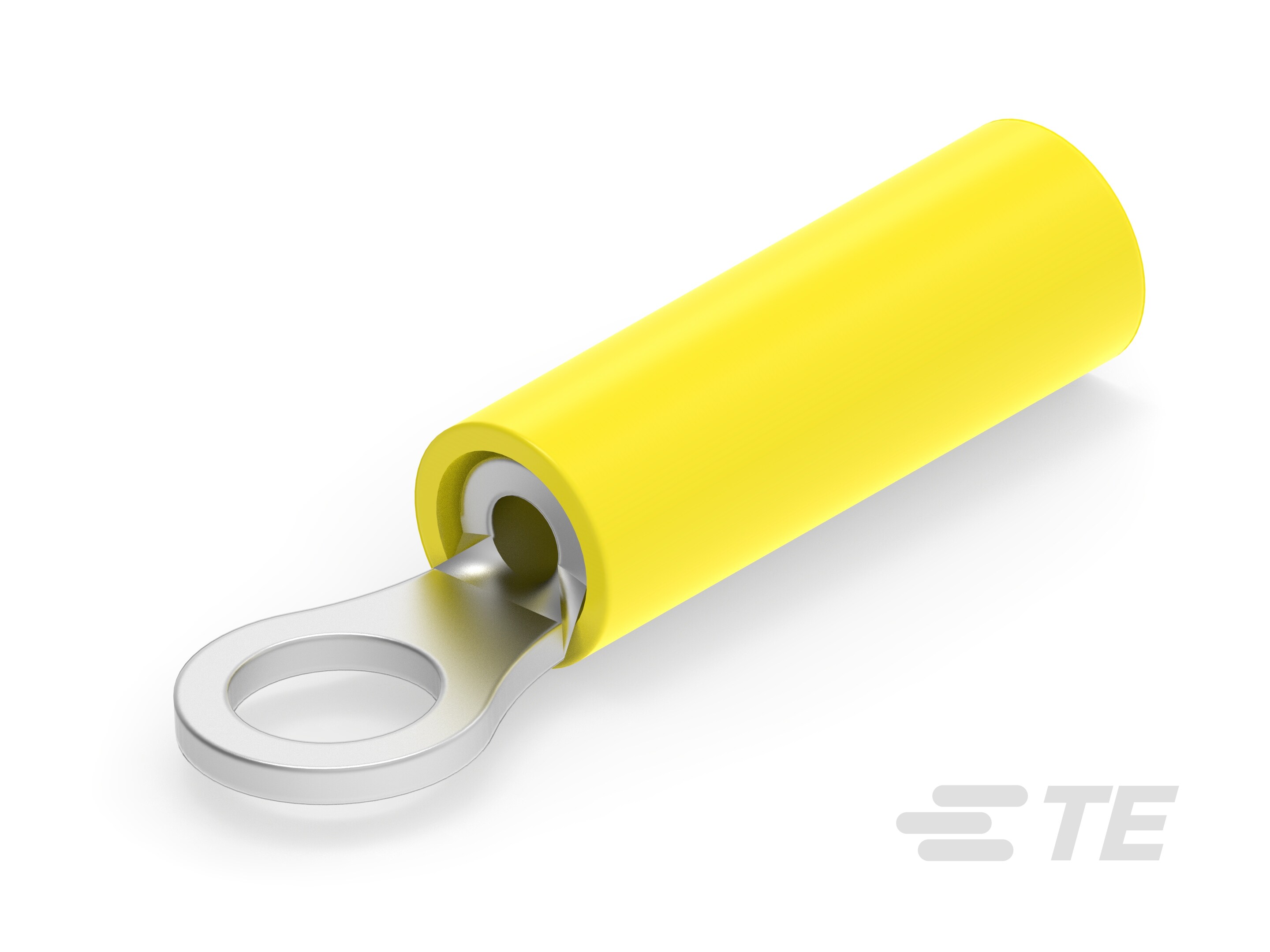

Closed Ring Tongue Terminal, 26 – 22 AWG, #2 / M2 Stud, 2.36 mm [.093 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification323912
ColorYellow
Contact FinishTin
Contact MaterialCopper
InsulationInsulated
Length - Overall0.525 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab SizeM2, M2 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.018 in
Width - Outer Edges0.14 in
Wire Gauge (AWG) (Max)26 AWG
Wire Gauge (AWG) (Min)22 AWG
