Description
General part information
RTKA223021DE0000BU

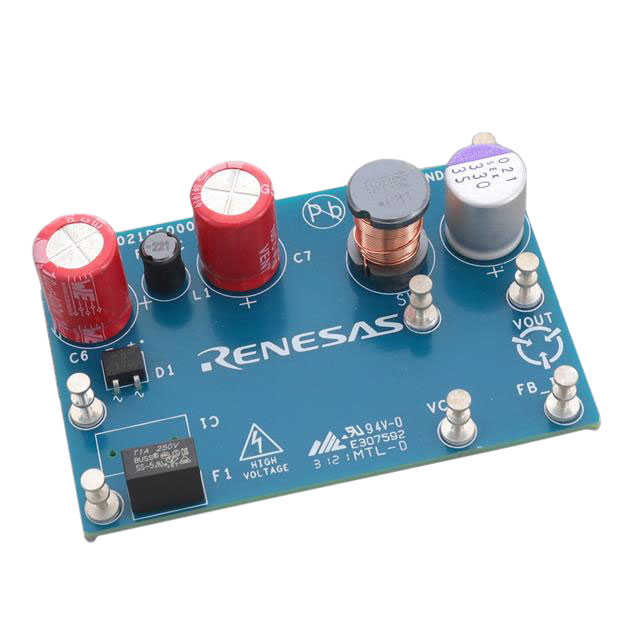

RAA223021 high voltage buck converter evaluation board is designed to demonstrate a low-cost high performance non-isolated AC/DC conversion from a universal input of 85VAC to 265VAC, to a 12V output with the output current up to 667mA. The board has built-in overcurrent, short-circuit, input brownout and overtemperature protection. The board is designed on a single side PCB with a full-wave input rectification. It is pre-compliant with conducted EMI requirements by EN55022/CISPR 22. It uses the RAA223021 SOIC-7 packaged IC. Typical applications home appliances, home automation, IoT, sensors, metering, industry control and bias power.
Technical Specifications
Parameters and characteristics for this part
| Specification | RTKA223021DE0000BU |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 667 mA |
| Frequency - Switching | 43 kHz |
| Main Purpose | AC/DC Converter |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Power - Output | 8 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | RAA223021 |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | 12 V |
