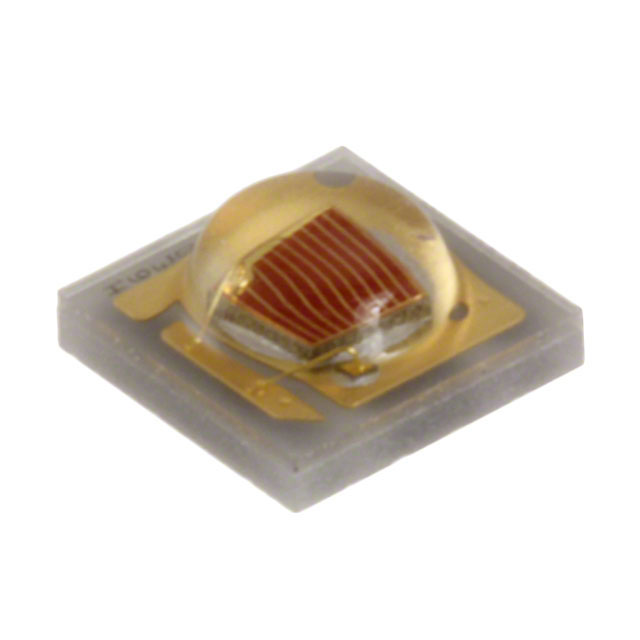

LD CQDP-2U4U-34-1-350-R18-K-XX
Unknownams-OSRAM USA INC.
LED OSLON SSL150 BLUE 450NM 2SMD
LD CQDP-2U4U-34-1-350-R18-K-XX
Unknownams-OSRAM USA INC.
LED OSLON SSL150 BLUE 450NM 2SMD
Description
General part information
LD CQDP-2U4U-34-1-350-R18-K-XX
LED Lighting Color OSLON® SSL 150 Blue 450nm (439nm ~ 461nm) 1212 (3030 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LD CQDP-2U4U-34-1-350-R18-K-XX |
|---|---|
| Color | Blue |
| Current - Max | 1 A |
| Current - Test | 350 mA |
| Height - Seated (Max) | 0.062 in |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Package Name | 1212, 2-SMD |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.118 in |
| Temperature - Test | 25 °C |
| Thermal Resistance of Package | 9.6 °C/W |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
| Wavelength | 450 nm |
| Wavelength (Maximum) | 461 nm |
| Wavelength (Minimum) | 439 nm |
| Wavelength (Nominal) | 450 nm |
