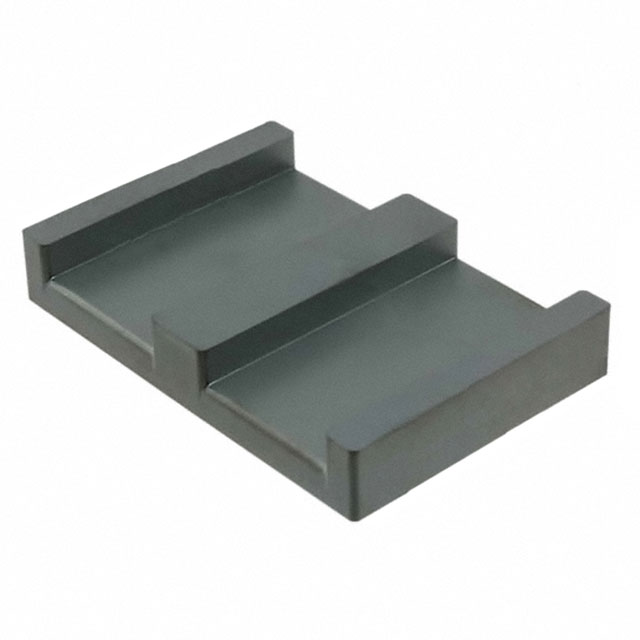

Specification	B66291P0000X149

Core Factor (ΣI/A) mm⁻¹	0.22 mm⁻¹
Core Type	I
Effective Area (Ae)	229 mm²
Effective Length (le)	50.4 mm
Effective Magnetic Volume (Ve)	11500 mm³
Effective Permeability (µe)	1030
Finish	Uncoated
Gap	Ungapped
Height	0.161 in
Initial Permeability (µi)	1500
Length	1.7 in
Material	N49
Minimum Core Cross Section (Amin) (mm²)	225 mm²
Package Height	28 mm
Package Length	43 mm
Package Name	I
Package Width	4 mm
Tolerance	25 %
Width	1.098 in
