2502606-5
ActiveTE Connectivity AMP Connectors

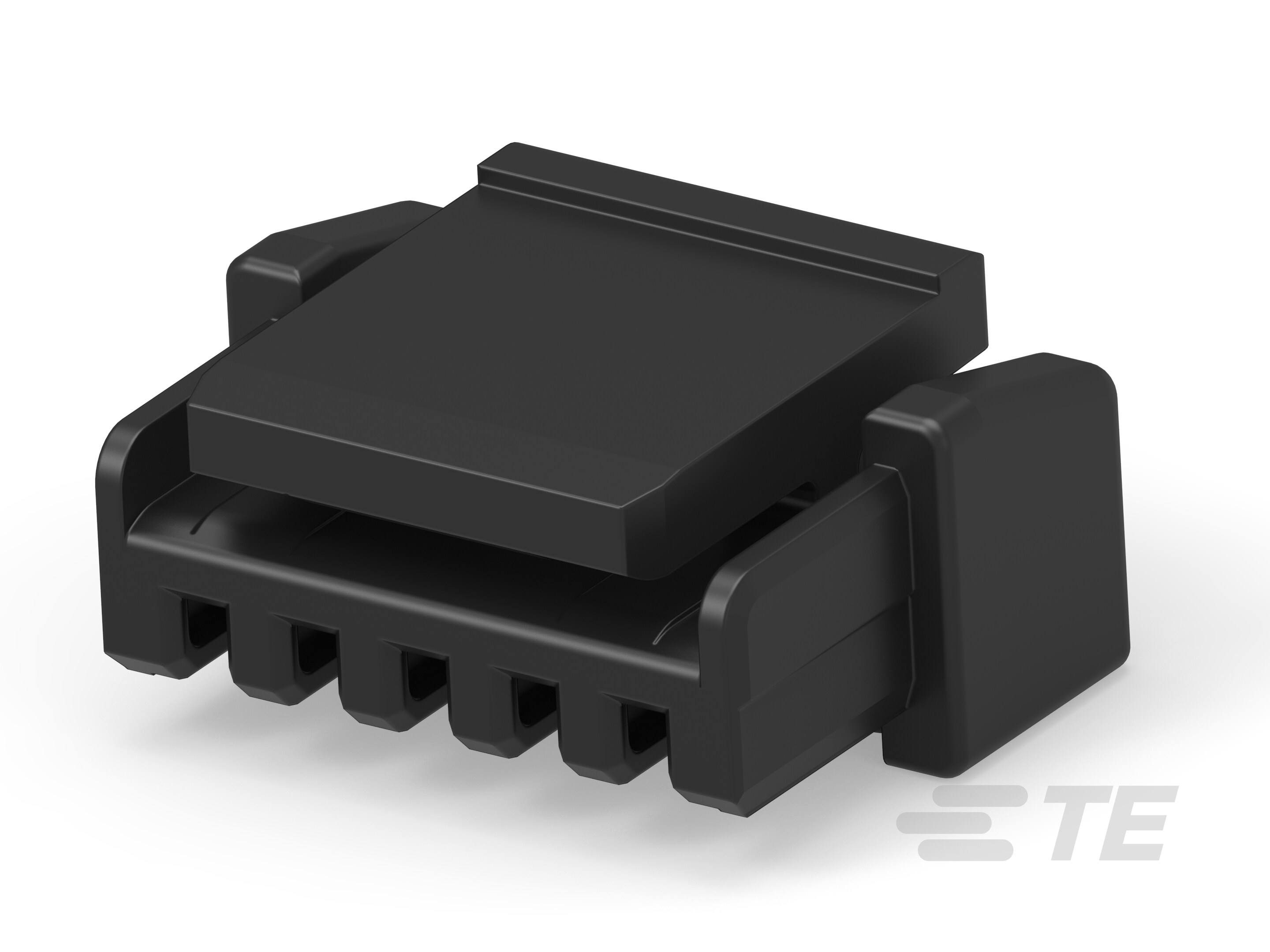

1.25MM HSG, LOCKING HPI, 5P
2502606-5
ActiveTE Connectivity AMP Connectors
1.25MM HSG, LOCKING HPI, 5P
Description
General part information
2502606-5
Wire-to-Board, 5 Position, 1.25 mm Centerline, Power & Signal, Black, Bag/Carton
Technical Specifications
Parameters and characteristics for this part
| Specification | 2502606-5 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.049 in |
