DGS15FT
ActivePasternack
CONNDB15F FLD TERM SCREWLESS
DGS15FT
ActivePasternack
CONNDB15F FLD TERM SCREWLESS
Description
General part information
DGS15FT

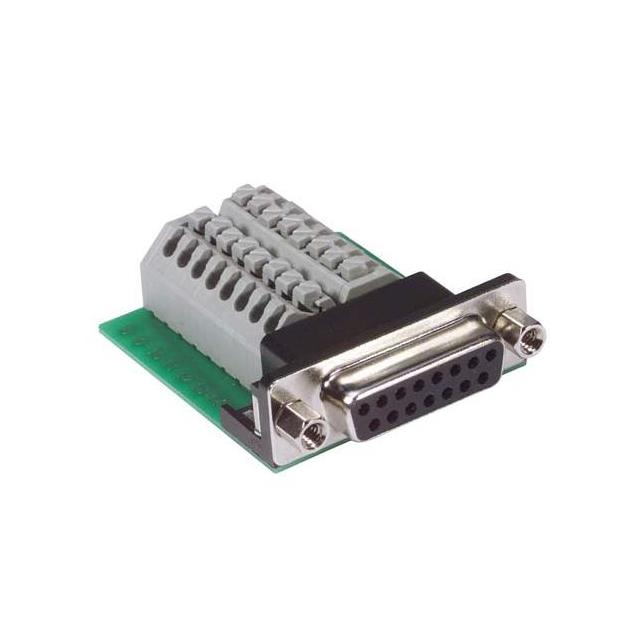

15 Position D-Sub Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | DGS15FT |
|---|---|
| Color | Black |
| Connector Layout | A, DA |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Form | Machined |
| Contact Type | Signal |
| Features | Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Shell Size | 2 |
| Termination | Terminal Block |
| Voltage Rating (AC) | 1000 VAC |
| Voltage Rating (DC) | 500 VDC |
