Part	Primary Material	Termination	Finish	Shell Material	Current Rating	Contact Finish	Flange Feature	Contact Type	Number of Rows	Connector Style	Material Flammability Rating	Number of Positions	Shell Size	Connector Layout	Connector Type	Mounting Type	Contact Material	Color	Contact Form	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness	Features	Ingress Protection Description	Ingress Protection IP Rating	Current Rating (Per Contact)	Compatible D-Sub Size	Hardware	Cable Exit Angle	Cable Type	Accessory Type	Material	Compatible Shell Size	Shielding
Molex 1731100136	Metal	Solder	Tin Plated	Steel	5 A	Gold	Housing Shell (Unthreaded)	Signal	3	D-Sub	UL94 V-0	50	5	D DD	Female Sockets Receptacle	Through Hole	Copper Alloy	White	Machined	Glass Filled Polyester	125 °C	-55 °C
Molex 1731100119	Metal	Solder Cup	Tin Plated	Brass	5 A	Gold	Housing Shell (4-40)	Signal	2	D-Sub	UL94 V-0	9	1	DE E	Male Pins Plug	Panel Mount	Copper Alloy		Machined	Glass Filled Thermoplastic	70 °C	-25 °C	31 µin	Grounding Indents	Dust Tight Waterproof	IP67
Molex 1731100027	Metal	Solder	Tin Plated	Brass		Gold		Signal	2	D-Sub	UL94 V-0	9	1	DE E	Female Sockets Receptacle	Panel Mount Right Angle Through Hole							31.5 µin	Board Lock	Dust Tight Waterproof	IP67	7.5 A
Molex 1731100092		Solder Cup	Tin Plated	Brass	5 A	Gold	Female Screwlock (4-40) Mating Side	Signal	2	D-Sub	UL94 V-0	25	3	B DB	Male Pins Plug	Panel Mount							31.5 µin	Grounding Indents	Dust Tight Waterproof	IP67
Molex 1731100104		Solder	Tin Plated	Brass	5 A	Gold	Board Side (4-40)	Signal	2	D-Sub	UL94 V-0	15	2	A DA	Female Sockets Receptacle	Right Angle Through Hole	Copper Alloy	Red	Machined	Glass Filled Thermoplastic	70 °C	-25 °C	31.5 µin	Board Lock	Dust Tight Waterproof	IP67
Molex 1731100066		Solder	Tin Plated	Brass	5 A	Gold	Housing Shell (4-40)	Signal	2	D-Sub	UL94 V-0	37 pos	4	C DC	Male Pins Plug	Panel Mount Through Hole	Copper Alloy		Machined	Glass Filled Thermoplastic	70 °C	-25 °C	3.94 µin	Board Lock Grounding Indents	Dust Tight Waterproof	IP67
Molex 1731100198

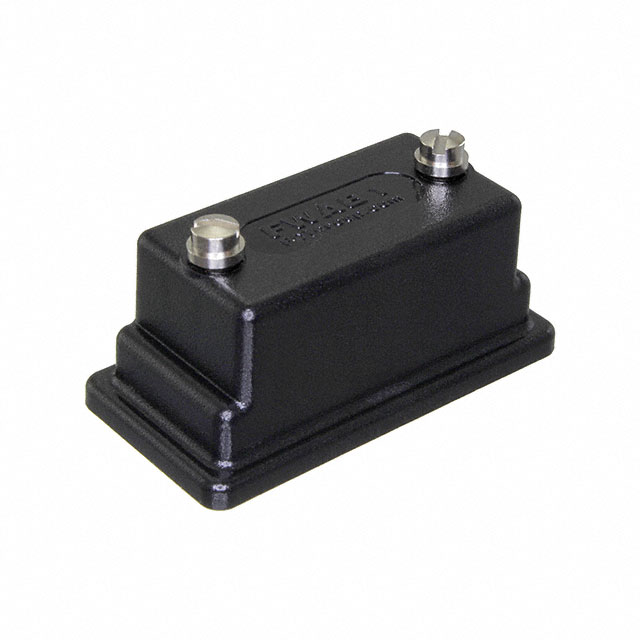

Molex 1731100082	Plastic											25						Black						Dust Tight/Waterproof (IP67) Mating Screws 4-40				25pos HD44pos	Assembly Hardware Cable Clamp Strain Relief	180 °	Round	One Piece Backshell	Acrylonitrile Butadiene Styrene (ABS)	B	Unshielded
Molex 1731100356		Solder	Tin Plated	Brass	5 A	Gold	Housing Shell (M3)	Signal	2	D-Sub	UL94 V-0	9	1	DE E	Female Sockets Receptacle	Panel Mount Through Hole	Copper Alloy		Machined	Glass Filled Thermoplastic	70 °C	-25 °C	31.5 µin	Board Lock	Dust Tight Waterproof	IP67
Molex 1731100149	Metal	Wire Wrap	Tin Plated	Brass	3 A	Gold	Housing Shell (Unthreaded)	Signal	2	D-Sub	UL94 V-0	9	1	DE E	Male Pins Plug	Panel Mount	Copper Alloy		Machined	Glass Filled Thermoplastic	70 °C	-25 °C			Dust Tight Waterproof	IP67

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
