1210N471G102CT
ActiveWalsin Technology Corporation

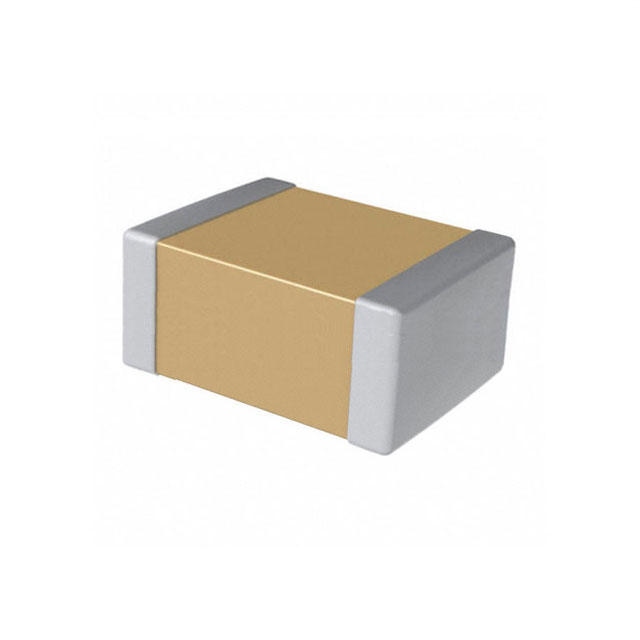

CAP CER 470PF 1KV C0G/NP0 1210
1210N471G102CT
ActiveWalsin Technology Corporation
CAP CER 470PF 1KV C0G/NP0 1210
Description
General part information
1210N471G102CT
470 pF ±2% 1000V (1kV) Ceramic Capacitor C0G, NP0 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1210N471G102CT |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 470 pF |
| Features | High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.071 in |
| Tolerance | 2 % |
| Voltage - Rated | 1000 V |
