4-1418448-1

Active

TE Connectivity AMP Connectors

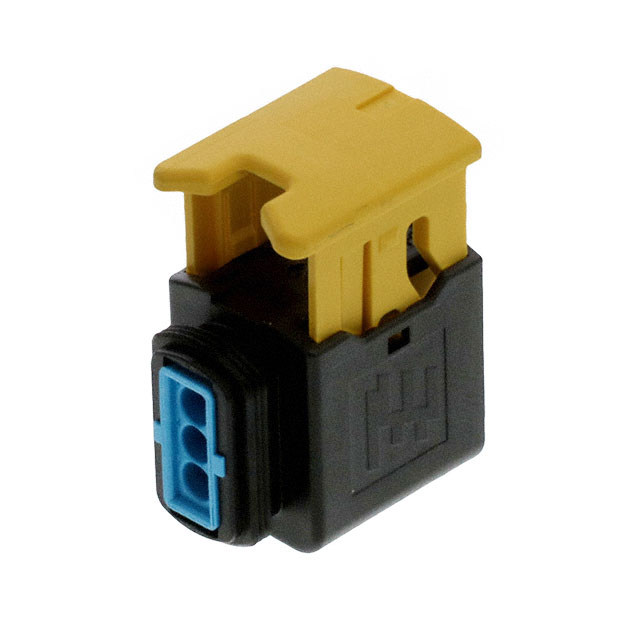

CONN RCPT HSG 3POS 4.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 3POS 4.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-1418448-1	1418448 Series

Color	Blue	Blue, Gray
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Slide-On	Slide-On
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	-	2
Number of Rows	1	1
Operating Temperature [Max]	140 °C	140 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	4 mm	4 mm
Pitch [x]	0.157 in	0.157 in

CONN RCPT HSG 3POS 4.00MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Pitch [x]	Pitch [x]	Contact Termination	Connector Type	Contact Type	Insulation Material	Note	Mounting Type	Features	Fastening Type	Color	Number of Positions
TE Connectivity AMP Connectors 4-1418448-1	140 °C	-40 °C	1	4 mm	0.157 in	Crimp	Receptacle	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Contacts Not Included	Free Hanging (In-Line)	Sealed	Slide-On	Blue
TE Connectivity AMP Connectors 2-1418448-2			1			Crimp	Receptacle	Female Socket		Contacts Not Included	Free Hanging (In-Line)	Sealed	Slide-On	Gray	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Receptacle Blue 0.157" (4.00mm)
