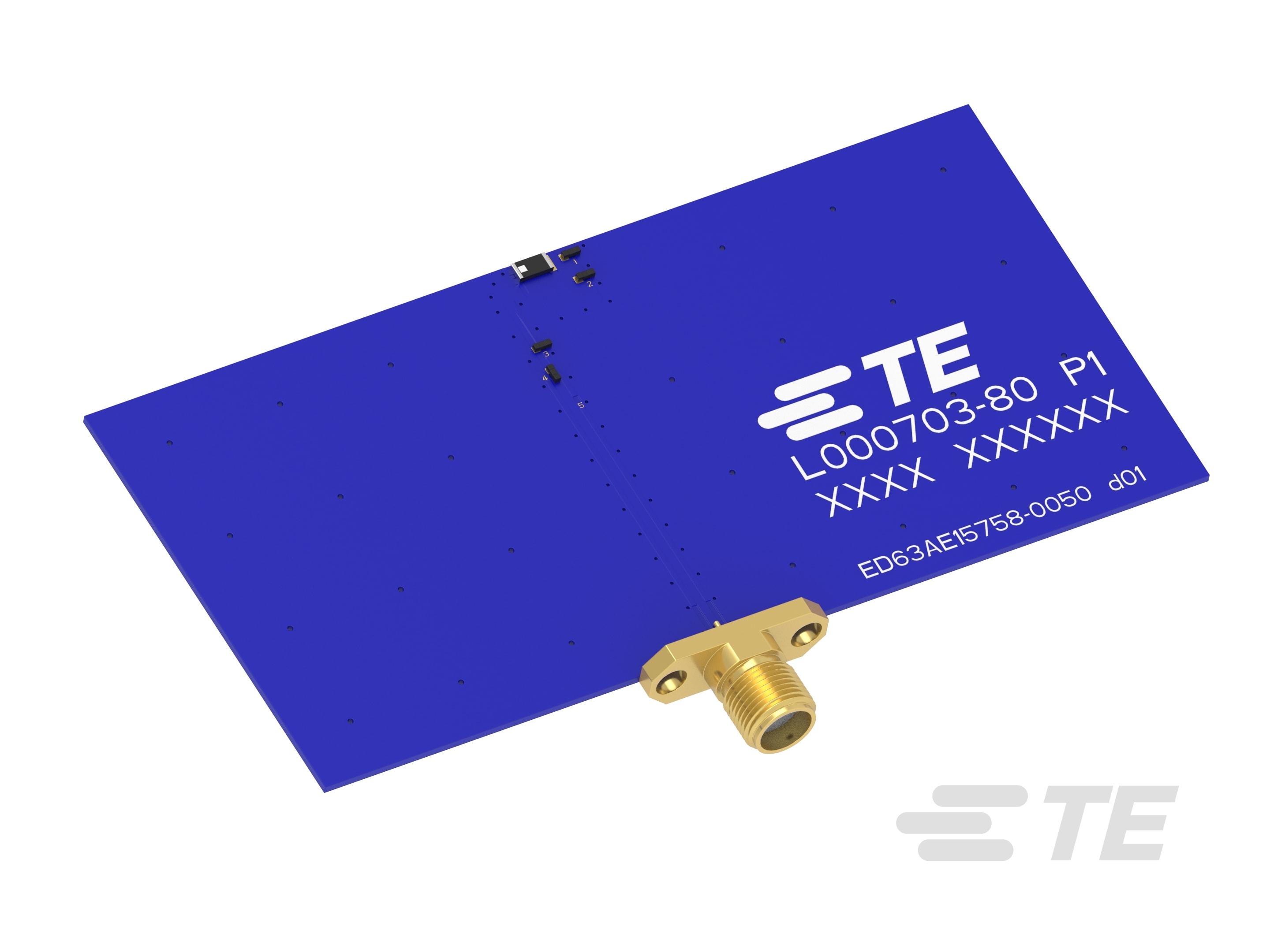

L000703-80
Chip Antenna, Single Band, GNSS, Internal/Embedded Mount, Surface Mount, SMD, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000703-80 |
|---|---|
| Antenna Type | Chip |
| Applications | GNSS, GPS |
| Frequency (Center/Band) | 1.52 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.602 GHz |
| Frequency Range (Min) | 1.561 GHz |
| Gain | 3 dBi |
| Height (Max) | 0.024 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 2.5 |
