Description
General part information

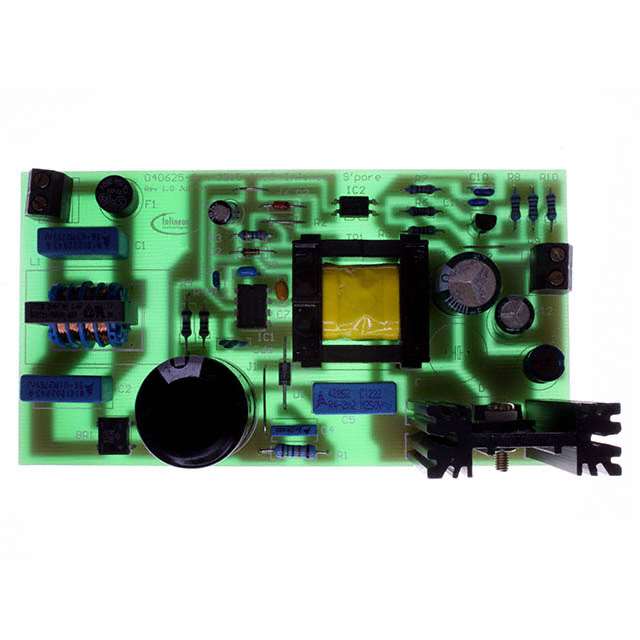

EVALSF3-ICE3B1565
ICE3B1565 CoolSET®F3 AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALSF3-ICE3B1565 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 1.25 A |
| Frequency - Switching | 67 kHz |
| Isolated Output Count | 1 |
| Main Purpose | Primary Side, AC/DC |
| Output Type | Isolated |
| Power - Output | 20 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | ICE3B1565 |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | 16 VAC |
