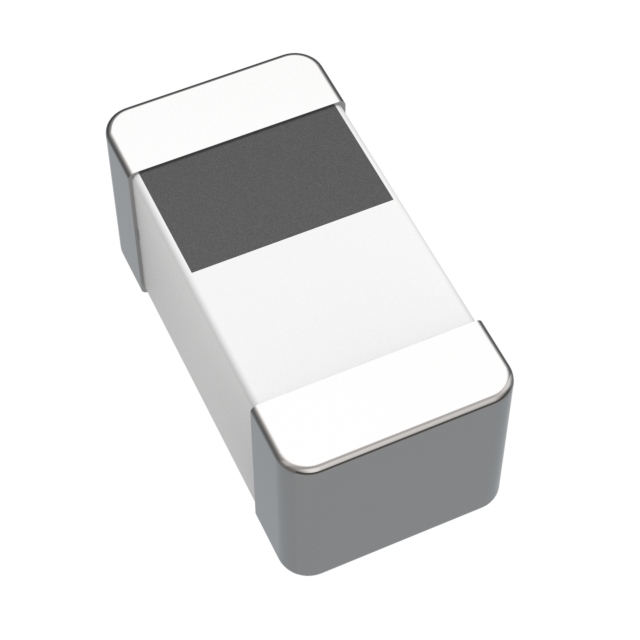

WLCM1005Z0J6N8TB
ActiveWalsin Technology Corporation
INDUCTOR FIXED 6.8NH 0402
WLCM1005Z0J6N8TB
ActiveWalsin Technology Corporation
INDUCTOR FIXED 6.8NH 0402
Description
General part information
WLCM1005Z0J6N8TB
6.8 nH Unshielded Multilayer Inductor 600 mA 250mOhm Max 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | WLCM1005Z0J6N8TB |
|---|---|
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 250 mOhm |
| Frequency - Self Resonant | 4.5 GHz |
| Height - Seated (Max) | 0.024 in |
| Inductance | 6.8 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Q | 8 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Tolerance | 5 % |
| Type | Multilayer |
