Specification	1301410033

Approval Agency	UL, CSA
Connector Style	NEMA 5-15R
Connector Type	Receptacle, Female Sockets
Current Rating	15 A
Features	Cord-Clamp Strain Relief, Lighted, Ground Indicator
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Termination	Screw
Voltage Rating	125 V

130141 Series

Super-Safeway Connector with Locking Blade, 2 Pole/3 Wire, NEMA L7-30, 277V

Part	Connector Type	Approval Agency	Connector Style	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating	Number of Positions	Current Rating	Mounting Type	Termination	Features
Molex 1301410006	Male Blades Plug	CSA UL	NEMA 1-15P	Dust Tight Waterproof	IP67	125 V	2	15 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief Non-Polarized
Molex 1301410066	Female Sockets Receptacle	CSA UL	NEMA L6-20R			250 V	3	20 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief Locking Blade
Molex 1301410030	Female Sockets Receptacle	CSA UL	NEMA 7-15R	Dust Tight Waterproof	IP67	277 VAC	3	15 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief
Molex 1301410084
Molex 1301410024	Female Sockets Receptacle	CSA UL	NON-NEMA (3P3W)			250 V	3	15 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief Locking Blade

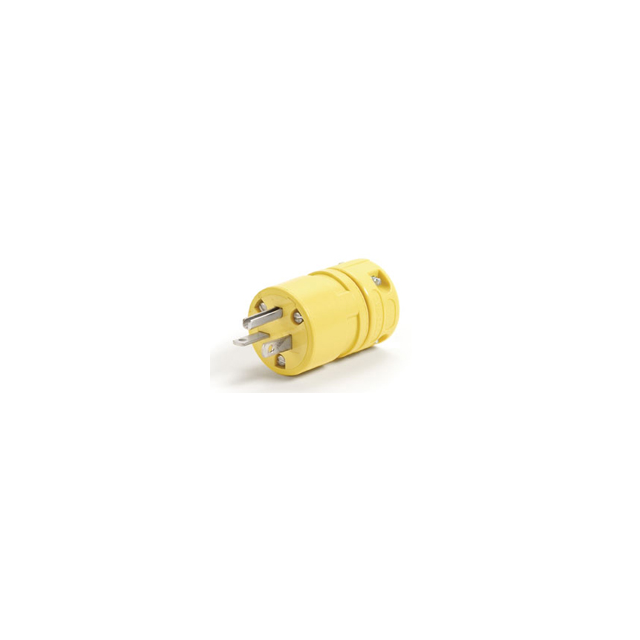

Molex 1301410010	Male Blades Plug	CSA UL	NEMA 5-20P			125 V	3	20 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief
Molex 1301410014	Male Blades Plug	CSA UL	NEMA 7-15P			277 VAC	3	15 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief
Molex 1301410036	Female Sockets Receptacle	CSA UL	NEMA L6-20R			250 V	3	20 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief
Molex 1301410023	Female Sockets Receptacle	CSA UL	NEMA 1-15R			125 V	2	15 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief
Molex 1301410069	Female Sockets Receptacle	CSA UL	NEMA L7-30R			277 VAC	3	30 A	Free Hanging (In-Line)	Screw	Cord-Clamp Strain Relief Locking Blade
