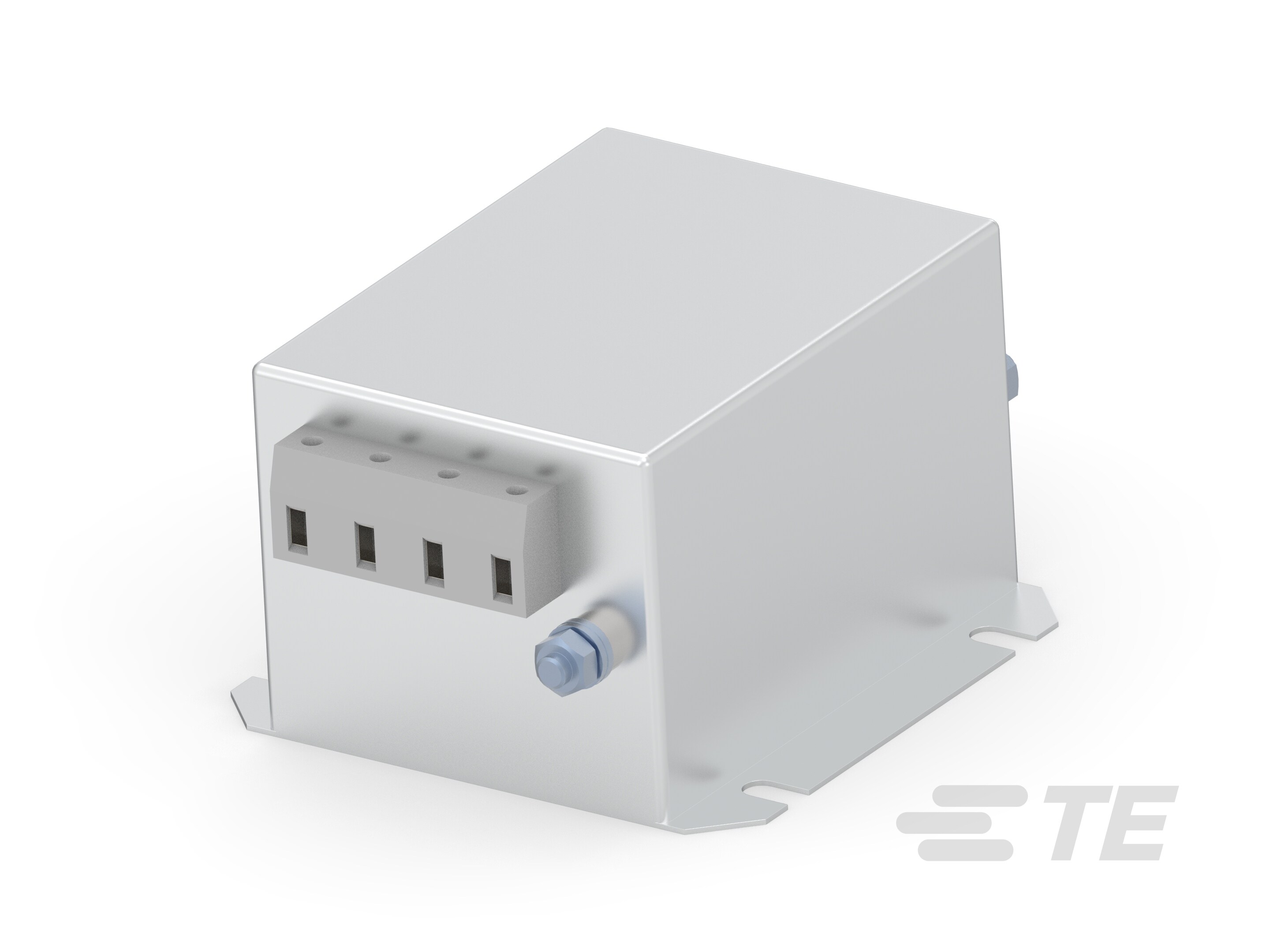

Specification	FN3256H-8-29-R69

Applications	General Purpose
Approval Agency	ENEC, CSA, UR, UKCA, CE
Configuration	Single Stage
Current	8 A
Filter Subtype	Wye
Filter Type	Three Phase
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	0 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Schaffner FN3256H Series

Part	Voltage - Rated AC	Frequency - Operating (Max)	Approval Agency	Filter Subtype	Filter Type	Configuration	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Current	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated AC (Phase to Phase)	Termination Style	Applications
TE Connectivity AMP Connectors FN3256H-160-40	480 V	60 Hz	CSA ENEC UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	160 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-64-34-R69		60 Hz	CE CSA ENEC UKCA UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	64 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-36-33	480 V	60 Hz	CSA ENEC UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	36 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-36-33-R69		60 Hz	CE CSA ENEC UKCA UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	36 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-8-29	480 V	60 Hz	CSA ENEC UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	8 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-25-33	480 V	60 Hz	CSA ENEC UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	25 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-25-33-R69		60 Hz	CE CSA ENEC UKCA UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	25 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-64-34-R69		60 Hz	CE CSA ENEC UKCA UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	64 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-120-35	480 V	60 Hz	CSA ENEC UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	120 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
TE Connectivity AMP Connectors FN3256H-80-35-R69		60 Hz	CE CSA ENEC UKCA UR	Wye	Three Phase	Single Stage	Chassis Mount	300 V	80 A	-25 °C	100 °C	520 V	Terminal Block	General Purpose
