HG2425DPD
ActivePasternack

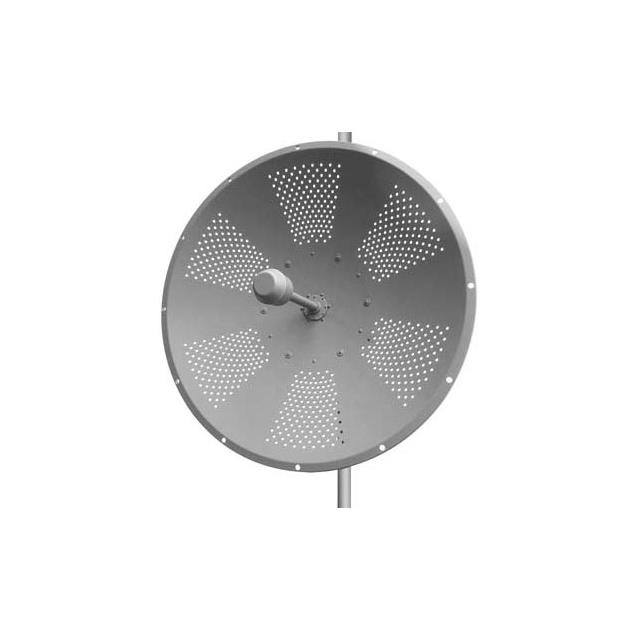

ANTDISH 2.4GHZ 25DBI
HG2425DPD
ActivePasternack
ANTDISH 2.4GHZ 25DBI
Description
General part information
HG2425DPD
RF ANTENNA 802.11b/g/n, ISM, Wi-Fi, WLAN Dish N Type Female (2) Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2425DPD |
|---|---|
| Antenna Type | Dish |
| Applications | WLAN, 802.11b/g/n, ISM, Wi-Fi |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 25 dBi |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | Cellular, WiFi, General ISM |
| Termination Count | 2 |
| Termination Type | N Type Female |
| VSWR | 1.5 |
