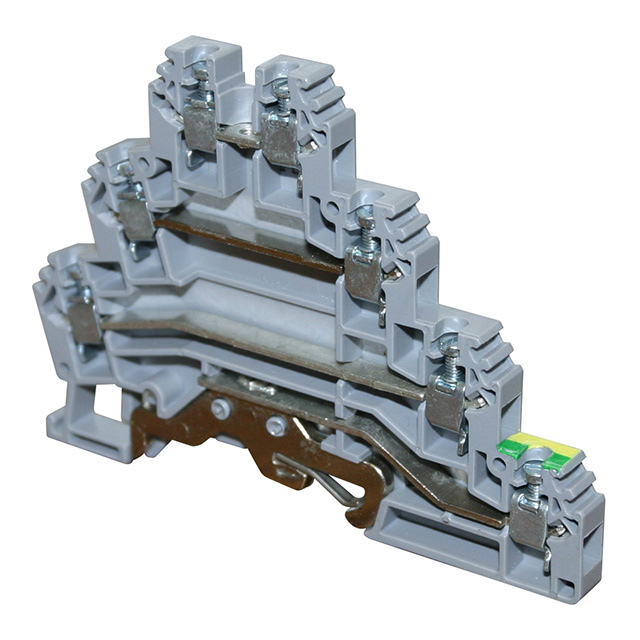

CTLG2.5
ActiveAltech Corporation
CONN TERM BLK FEED THRU 12-24AWG
CTLG2.5
ActiveAltech Corporation
CONN TERM BLK FEED THRU 12-24AWG
Description
General part information
CTLG2.5
Terminal Block Connector 7 Position Feed Through (3), Isolated Gray 12-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | CTLG2.5 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Current - UL | 24 A |
| Grounded Levels | 1 |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Number of Levels | 4 |
| Number of Positions | 7 |
| Stripping Length | 9 mm |
| Terminal Width | 6 mm |
| Termination Style | Screw |
| Type | Feed Through (3), Isolated |
| Voltage - IEC | 440 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
