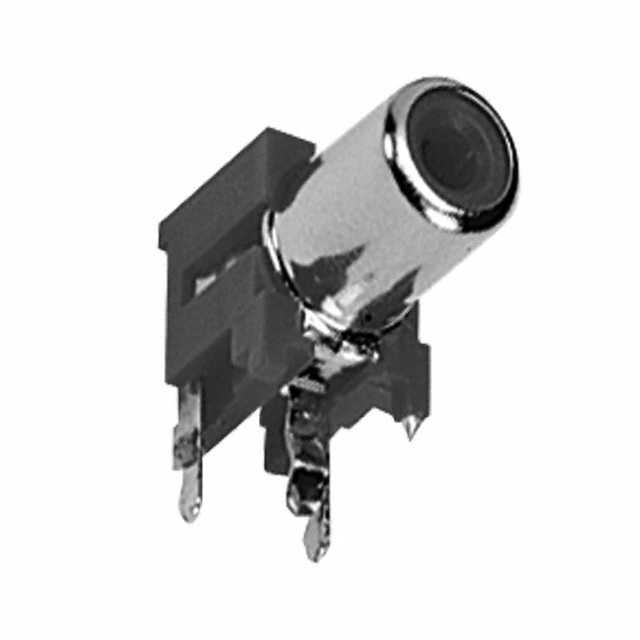

Specification	PJRAN1X1U03

Actual Diameter (ID)	0.134 in
Actual Diameter (OD)	0.328 in
Body Color	Silver, Red
Body Material	Copper Alloy
Connector Type	Phono (RCA) Jack
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating	2 A
Gender	Female
Housing Material	ABS, Acrylonitrile Butadiene Styrene
Industry Recognized Mating Diameter (ID)	3.2 mm
Industry Recognized Mating Diameter (OD)	9 mm
Insulation Color	Red
Internal Switch(s)	Single Switch
Mounting Type	Through Hole, Right Angle
Number of Conductors	2
Number of Contacts	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder
Voltage - Rated	34 VAC/DC
