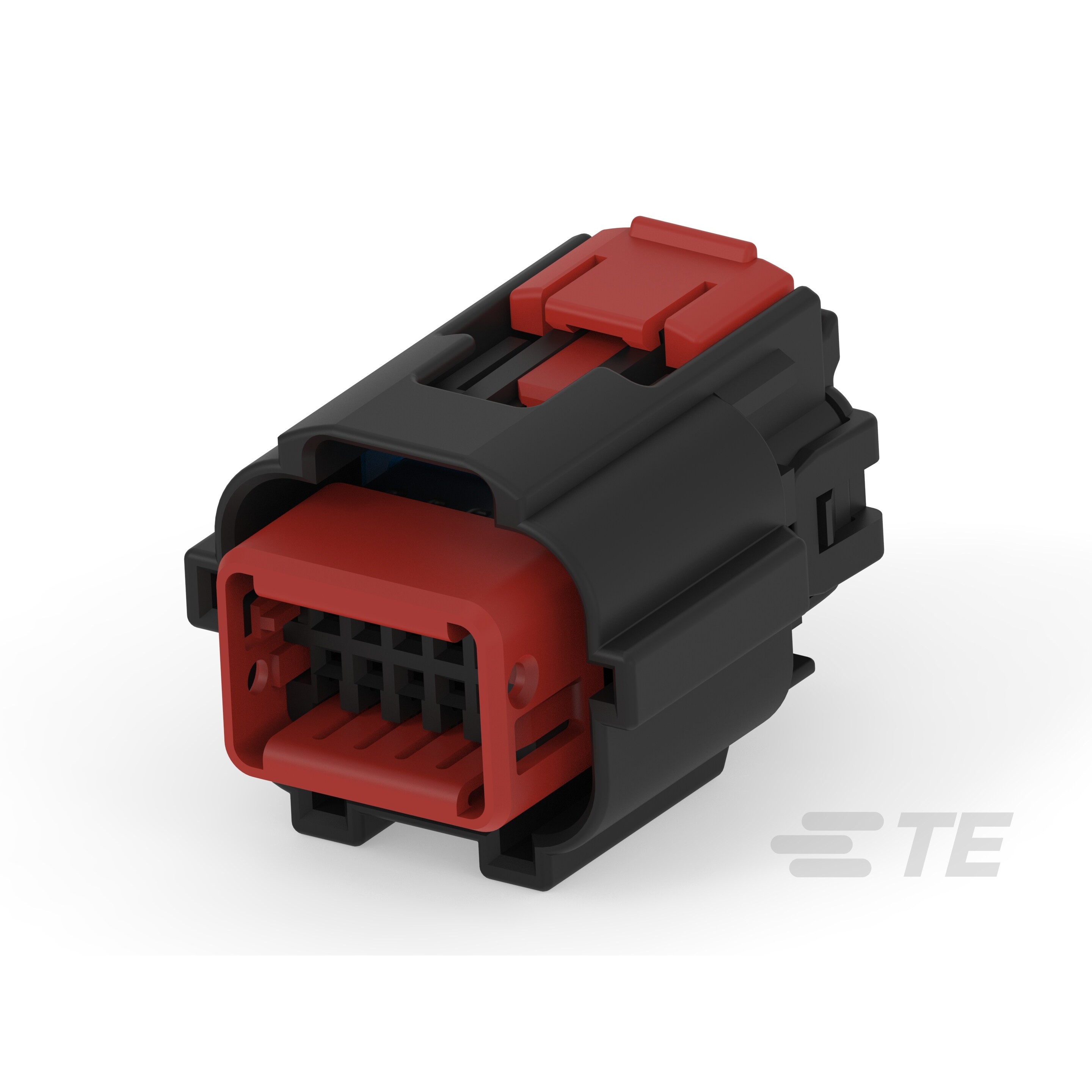

Specification	3-638517-0

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Connector Position Assurance (CPA), Sealed
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Row Spacing	0.1 in

AMP 0.64 Connector System Series

Part	Pitch	Contact Type	Connector Type	Row Spacing	Number of Positions	Insulation Material	Color	Contact Termination	Number of Rows	Mounting Type	Type	Contact Finish	Pin or Socket	Wire Gauge	Features	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Tool Type	For Use With/Related Products	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish Thickness
TE Connectivity AMP Connectors 1326133-1	0.1 in	Female Socket	Receptacle	0.232 in	18	Glass Filled Nylon Polyamide (PA)	Black	Crimp	2	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1326028-2								Crimp			Stamped	Tin	Socket	22 AWG
TE Connectivity AMP Connectors 1438454-1	0.1 in	Female Socket	Plug		3	Nylon Polyamide (PA)	Black	Crimp	1	Free Hanging (In-Line)					Connector Position Assurance (CPA) Sealed Terminal Position Assurance (TPA)	Latch Holder	125 °C	-40 °C
TE Connectivity AMP Connectors 638551-2								Crimp			Stamped	Tin	Socket	22 AWG
TE Connectivity AMP Connectors 9-1579007-0																			Extraction Tool	Rectangular Contacts
TE Connectivity AMP Connectors 1326028-1								Crimp			Stamped	Gold	Socket								18 AWG	20.5 AWG	3 µin
TE Connectivity AMP Connectors 1326141-1	0.1 in	Female Socket	Housing for Female Insert	0.202 in	32	Glass Filled Nylon Polyamide (PA)	Black	Crimp	2	Free Hanging (In-Line)						Push-Pull	125 °C	-40 °C
TE Connectivity AMP Connectors 638394-4	0.1 in	Female Socket	Plug	0.1 in	12	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	2	Free Hanging (In-Line)						Latch Holder	125 °C	-65 °C
TE Connectivity AMP Connectors 638393-1	0.1 in	Female Socket	Receptacle	0.1 in	10	Glass Filled Polybutylene Terephthalate (PBT)	Black	Crimp	2	Free Hanging (In-Line)						Latch Lock
TE Connectivity AMP Connectors 1438426-3	0.1 in	Female Socket	Plug		2	Nylon Polyamide (PA)	Gray	Crimp	1	Free Hanging (In-Line)					Connector Position Assurance (CPA) Sealed Terminal Position Assurance (TPA)	Latch Holder
