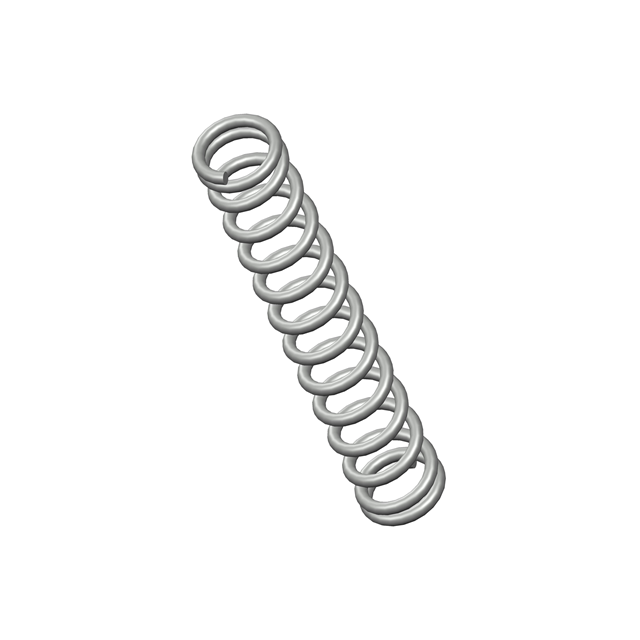

A15-1CS
ActiveCentury Spring Corp
COMP O= .062,L= .38,W= .009
A15-1CS
ActiveCentury Spring Corp
COMP O= .062,L= .38,W= .009
Description
General part information
A15 Series
COMP O= .062,L= .38,W= .009
Technical Specifications
Parameters and characteristics for this part
| Specification | A15-1CS |
|---|---|
| Diameter - Inside | 0.044 in |
| Diameter - Outside | 0.062 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.38 in |
| Material | Music Wire |
| Rate (lbs/in) | 5.5 lbs/in |
| Type | Compression |
| Wire Diameter | 0.009 in |
