Description
General part information

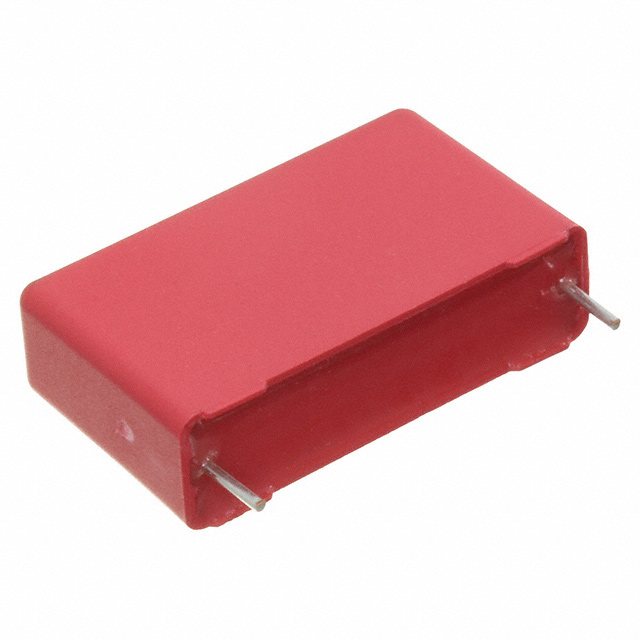

FKP1G031006A00JSSD
0.1 µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | FKP1G031006A00JSSD |
|---|---|
| Applications | Automotive, High Frequency, Switching, DV/DT, High Pulse |
| Capacitance | 0.1 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.748 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C, 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 1.24 in |
| Size / Dimension Width | 0.354 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 400 V |
