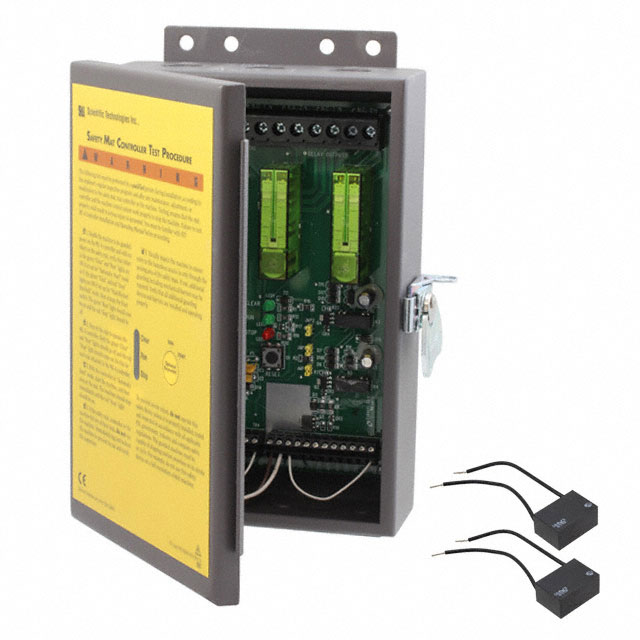

MC4-0001
ObsoleteOmron Automation and Safety
CONTROL SAFETY MAT 24V
MC4-0001
ObsoleteOmron Automation and Safety
CONTROL SAFETY MAT 24V
Description
General part information
MC4-0001
Machine Safety Controller Safety Mat 24VDC Supply Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MC4-0001 |
|---|---|
| Approval Agency | CSA, TUV, CE |
| Contact Rating (Current) | 6 A |
| Controller Type | Safety Mat |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Input Types | Digital |
| Mounting Type | Chassis Mount |
| Number of Inputs | 6 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Safety Category | Category 3 |
| Safety Output Type | Relay |
| Safety Outputs (Count) | 4 count |
| Termination Style | Circular, Screw Terminal |
| Voltage - Supply | 24 VDC |
| Weight | 9 lbs |
