Description
General part information

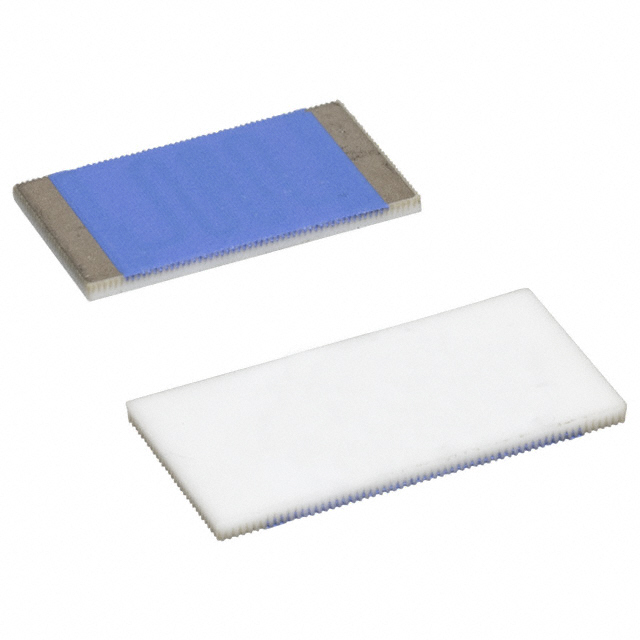

MC102825004J
5 MOhms ±5% 1.5W Chip Resistor Nonstandard High Voltage, Non-Inductive Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MC102825004J |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive, High Voltage |
| Height - Seated (Max) | 0.142 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 180 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 1.5 W |
| Resistance | 5 MOhm |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.25 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
