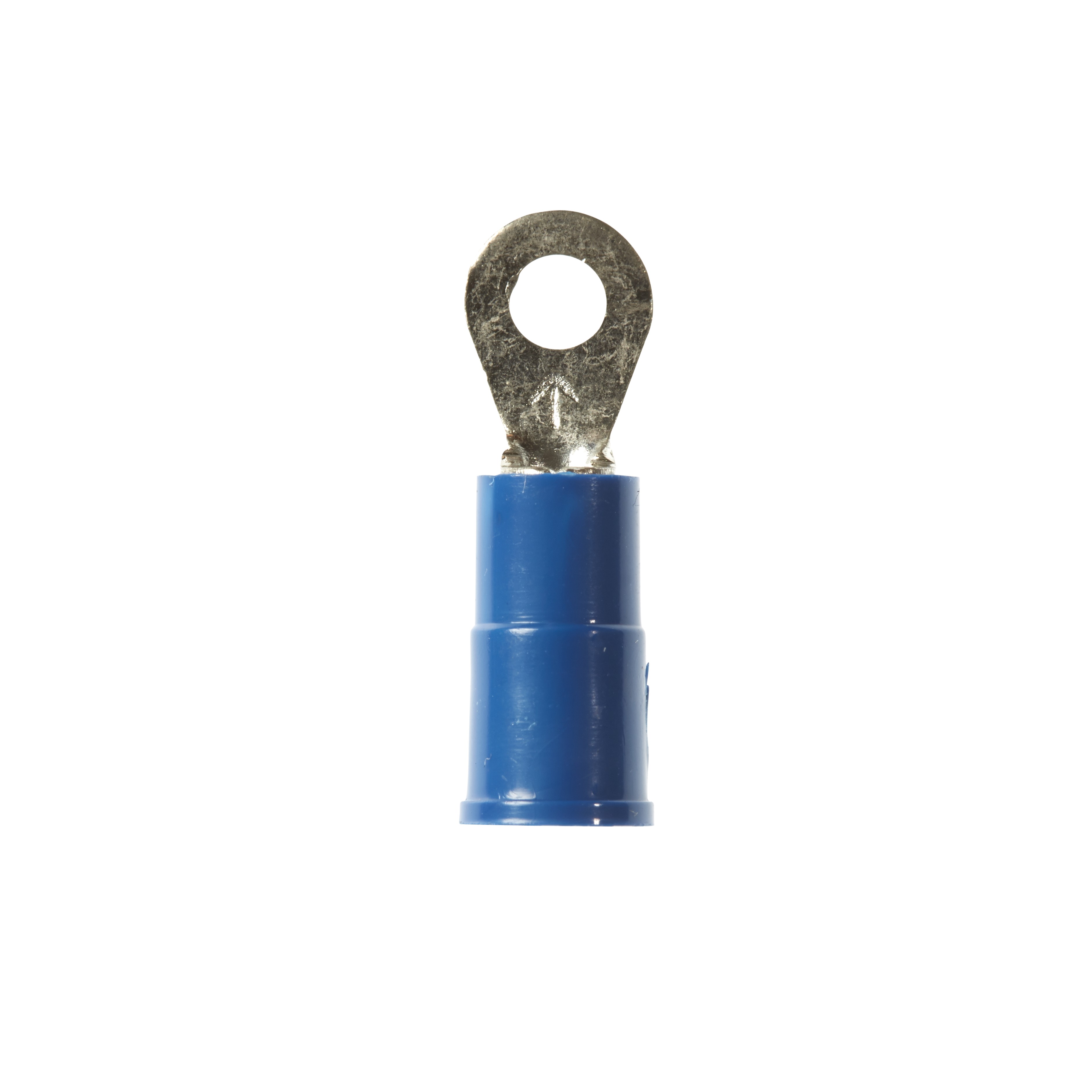

MV14-4R/SK
Active3M Electronic Specialty
CONN RING CIRC 14-16AWG #4 CRIMP
MV14-4R/SK
Active3M Electronic Specialty
CONN RING CIRC 14-16AWG #4 CRIMP
Description
General part information
MV14-4R/SK
CONN RING CIRC 14-16AWG #4 CRIMP
Technical Specifications
Parameters and characteristics for this part
| Specification | MV14-4R/SK |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Features | Brazed Seam |
| Insulation | Insulated |
| Length - Overall | 0.8 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 4 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.25 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
