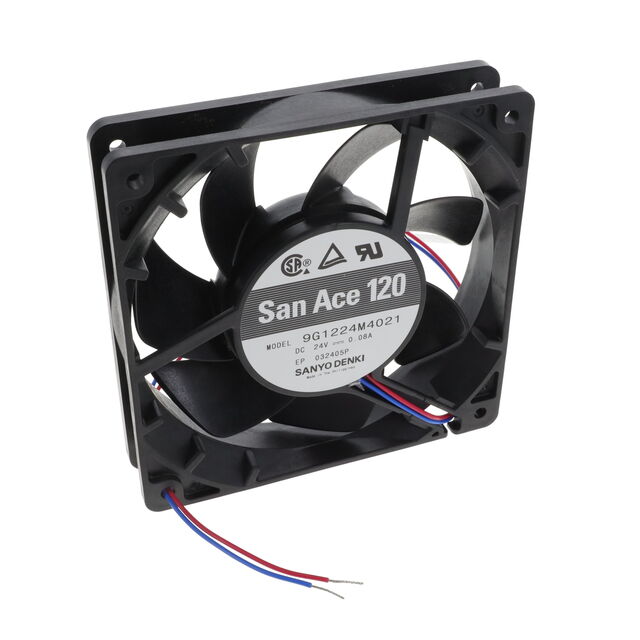

Specification	9G1224M4021

Air Flow	59 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.08 A
Fan Type	Tubeaxial
Lifetime	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	29 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	1.92 W
RPM	1950 RPM
Size / Dimension Height	119 mm
Size / Dimension Length	119 mm
Size / Dimension Shape	Square
Static Pressure	0.124 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	27.6 VDC
Voltage Range (Min)	20.4 VDC
Weight	0.529 lb
Width	25 mm

9G1224 Series

Part	Features	Voltage - Rated	Fan Type	Termination Leads Count	Termination Type	Termination	Operating Temperature (Min)	Operating Temperature (Max)	RPM	Bearing Type	Width	Weight	Power (Watts)	Air Flow	Noise	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Static Pressure	Approval Agency	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Material - Blade	Material - Frame	Lifetime
Sanyo Denki America Inc. 9G1224G101	Speed Sensor (Tach)	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	-4 °F	158 °F	3600 RPM	Ball	38 mm	0.728 lb	12 W	137 CFM	49 dB	119 mm	Square	119 mm	0.542 in H2O	CSA TUV UL	27.6 VDC	20.4 VDC	0.5 A	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224E1D011	Locked Rotor Sensor	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	-4 °F	158 °F	3100 RPM	Ball	38 mm	0.728 lb	8.16 W	118 CFM	46 dB	119 mm	Square	119 mm	0.401 in H2O	CSA TUV UL	27.6 VDC	20.4 VDC	0.34 A	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224H102		24 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	-4 °F	158 °F	2600 RPM	Ball	38 mm	0.728 lb	5.28 W	99 CFM	39 dB	119 mm	Square	119 mm	0.283 in H2O	CSA TUV UL	27.6 VDC	14 VDC	0.22 A	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224F101	Speed Sensor (Tach)	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	-4 °F	158 °F	2280 RPM	Ball	38 mm	0.728 lb	3.84 W	87 CFM	36 dB	119 mm	Square	119 mm	0.283 in H2O	CSA TUV UL	27.6 VDC	14 VDC	160 mA	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224G102		24 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	-4 °F	158 °F	3600 RPM	Ball	38 mm	0.728 lb	12 W	137 CFM	49 dB	119 mm	Square	119 mm	0.542 in H2O	CSA TUV UL	27.6 VDC	20.4 VDC	0.5 A	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224H4021		24 VAC	Tubeaxial	2 leads	Wire Leads	2 Wire Leads	-4 °F	158 °F	2850 RPM	Ball	25 mm	0.529 lb	4.08 W	88 CFM	40 dB	119 mm	Square	119 mm	0.257 in H2O	CSA TUV UL	27.6 VDC	12 V	0.17 A	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224M101	Speed Sensor (Tach)	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	-4 °F	158 °F	1950 RPM	Ball	38 mm	0.728 lb	2.64 W	74 CFM	32 dB	119 mm	Square	119 mm	0.159 in H2O	CSA TUV UL	27.6 VDC	14 VDC	110 mA	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224E4011	Speed Sensor (Tach)	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	-4 °F	158 °F	3650 RPM	Ball	25 mm	0.529 lb	8.88 W	115 CFM	48 dB	119 mm	Square	119 mm	0.394 in H2O	CSA TUV UL	27.6 VDC	20.4 VDC	0.37 A	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224H101	Speed Sensor (Tach)	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	-4 °F	158 °F	2600 RPM	Ball	38 mm	0.728 lb	5.28 W	99 CFM	39 dB	119 mm	Square	119 mm	0.283 in H2O	CSA TUV UL	27.6 VDC	14 VDC	0.22 A	Plastic	Plastic	40000 Hrs
Sanyo Denki America Inc. 9G1224M401	Speed Sensor (Tach)	24 VAC	Tubeaxial	3	Wire Leads	3 Wire Leads	-4 °F	158 °F	1950 RPM	Ball	25 mm	0.529 lb	1.92 W	59 CFM	29 dB	119 mm	Square	119 mm	0.124 in H2O	CSA TUV UL	27.6 VDC	20.4 VDC	0.08 A	Plastic	Plastic	40000 Hrs
